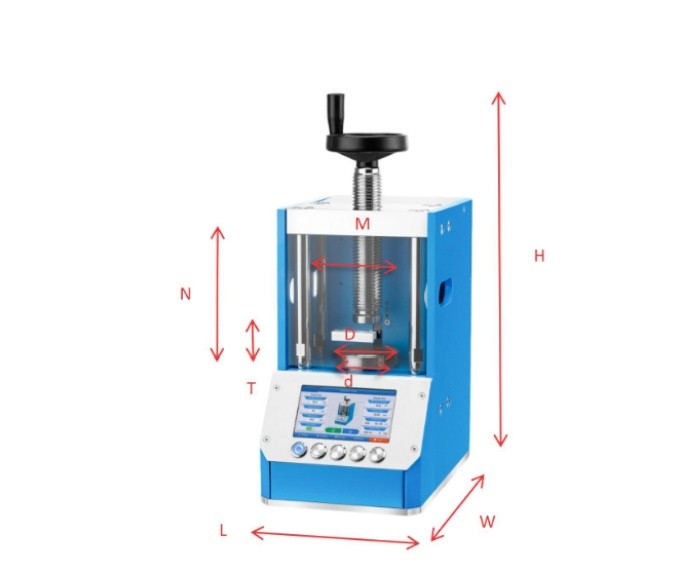

The Fully Automatic Hydraulic Press is engineered to deliver both. Designed specifically for demanding laboratory environments—including battery research, material science, and XRF analysis—this press automates the tableting process, eliminating operator variability and ensuring flawless, repeatable sample pellets.
FTIR and XRF Sample Preparation
KBr Pellet Pressing
General Material Crushing and Testing
Small-scale Laminating
| Model | PP-20S | PP-30S | PP-40S | PP-60S | PP-100S |
| Pressure range | 1-20.0T | 1-30.0T | 1-40.0T | 1-60.0T | 1-100.0T |
| Voltage regulation accuracy | 0.1t | 0.1t | 0.1t | 0.1t | 0.1t |
| Maximum cylinder stroke | 30mm | 30mm | 50mm | 50mm | 50mm |
| Pressure way | Electric pressure | ||||
| The sample preparation process | Intelligent automatic, program pressure/slow pressure - program pressure holding/pressure supplement - timing pressure relief - demoulding sampling | ||||
| Display mode | XNNETs 4.3-inch LCD display | ||||
| The time of holding pressure | 999 minutes and 59 seconds | ||||
| Mold pressure conversion | Program automatic conversion, digital display mold sample pressure (MPa) | ||||
| Cylinder limit device | Automatic pressure relief protection when the cylinder rises to the limit height | ||||
| Safety device | Steel plate protection with plexiglass protection door | ||||
| Overall structure | One-piece structure, no sealing link, reduce oil leakage | ||||
| Power supply | 220V (50 hz / 60 hz) | ||||
| Workspace | 140*160mm | 140*160mm | 175*180mm | 185*220mm | 185*250mm |
| Overall dimensions | 230*390*420mm | 230*390*420mm | 280*460*550mm | 300*520*580mm | 330*580*620mm |
| Weight | 90kg | 95kg | 150kg | 180kg | 240kg |
