The PP-2S Fully Automatic Hydraulic Press is engineered to deliver both. Designed specifically for demanding laboratory environments—including battery research, material science, and XRF analysis—this press automates the tableting process, eliminating operator variability and ensuring flawless, repeatable sample pellets.
FTIR and XRF Sample Preparation
KBr Pellet Pressing
General Material Crushing and Testing
Small-scale Laminating
| Model | PP-2S |
| Pressure range | 0.01 -2 T |
| Pressure display accuracy | 0.01 Tons |
| Display panel | 5” touch screen panel |
| Metal button /key | Sliver-plated contacts, with a service life of over 100,000 cycles. |
| Pressure safety | The device has automatic pressure overload protection. |
| Limited switch | The oil cylinder automatically releases pressure when it reaches the limit height. |
| Curve graph | Can display each operation curve graph and support U disk download Excel file |
| Program control | up to 18 segments of program control |
| Speed adjustment | Pressure increasing speed is adjustable |
| Remote control | A computer is required to analyze, compare, modify, and export data. |

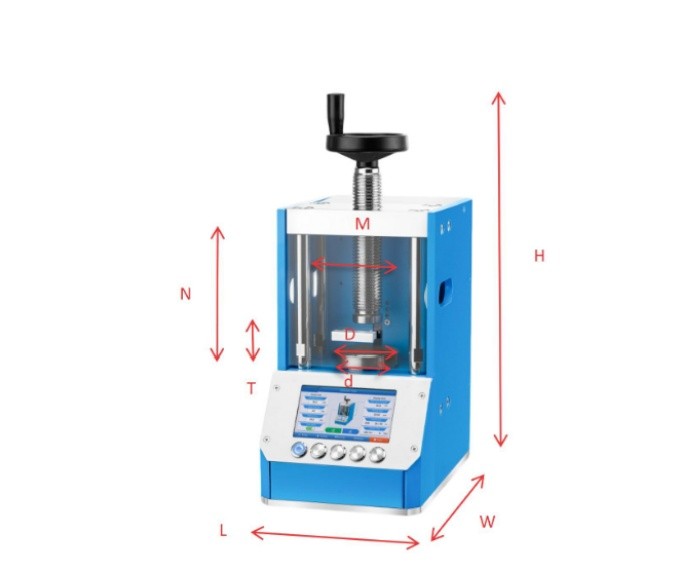

| Working space | 110×140 mm （M×N） |
| Voltage | 110 V / 220 V |
| Power | 500W |
| Dimension | Product size: 185×320×360mm (L×W×H)Net weight: 50kgPacking size:405×420×550mmGross weight:60kg |
