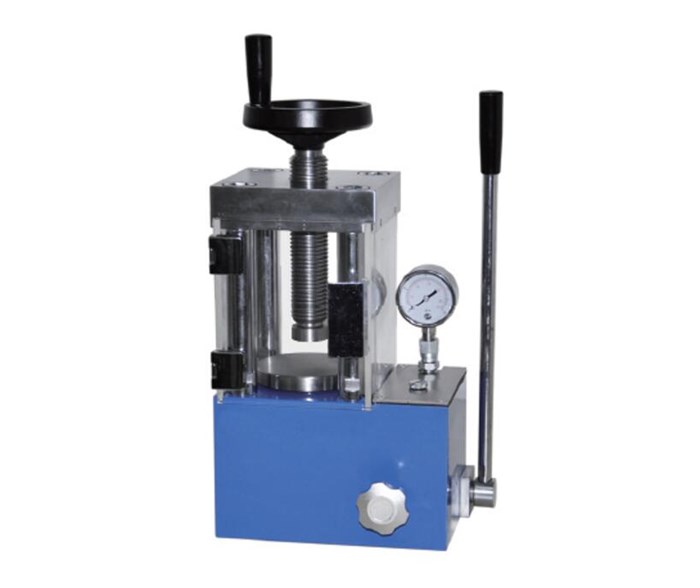

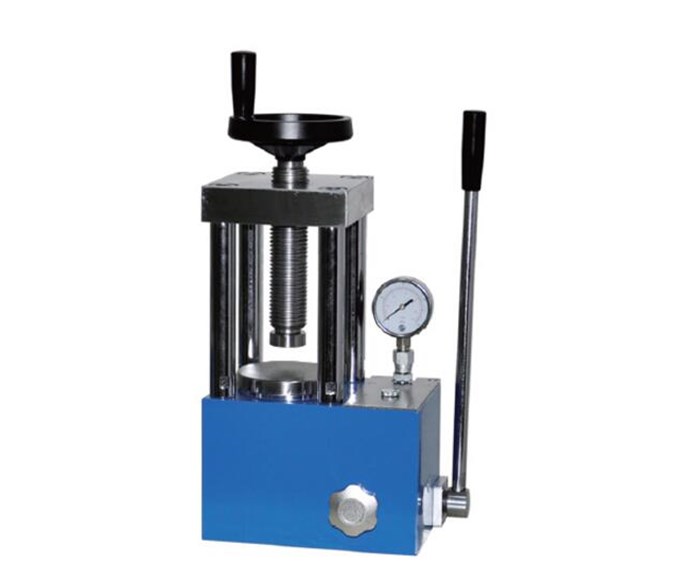

CHY-24T Laboratory Powder Press with Protective Cover

1.Small size, light weight,No oil linkage, easy to carry.

2.Digital display pressure gauge0.1MPa,Pressure control is more accurate.

Share:
Application
  1. Compound ceramic samples in materials/chemistry research laboratory

  2. Catalytic Reaction

  3. Battery Energy

  4. Cement Ore

Product parameters


Product Name24T Hydraulic Pellet Press
TypeCHY-24T   CHY-24F
Pressure range0-24T(0-34MPa)
Piston diameterChrome plated cylinder 95mm
Overall structureUnsealed connection of equipment to reduce leakage
Pressure gaugePressure pressure double scale display
Maximum piston stroke30mm(T)
Pressure stability≤1MPA/10Min
Worktable diameter105mm(O.D)
Number of columnsFour Column
Column spacing80*150mm
Protective CoverNot HavePlexi glass

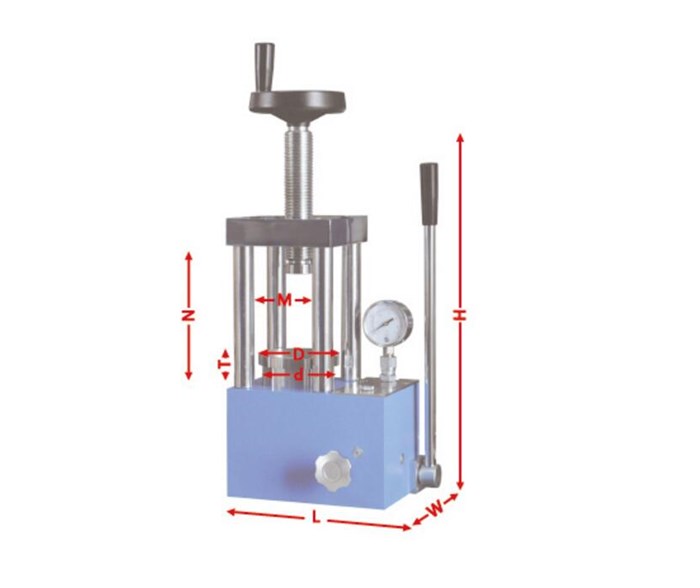

Over dimension245*175*415mm260*175*420mm
Weight42kg44Kg

Pressure Conversion


Real PressureSystem PressurePressure Gauge
1Ton1.41MPa CHY-5T Laboratory 5T Hydraulic Press with Digital Gauge
2Ton2.82MPa
3Ton4.23MPa
5Ton7.06MPa
8Ton11.3MPa
10Ton14.1MPa
15Ton21.2MPa
20Ton28.3MPa
24Ton34MPa
