  • CHY-5T Laboratory 5T Hydraulic Press with Digital Gauge

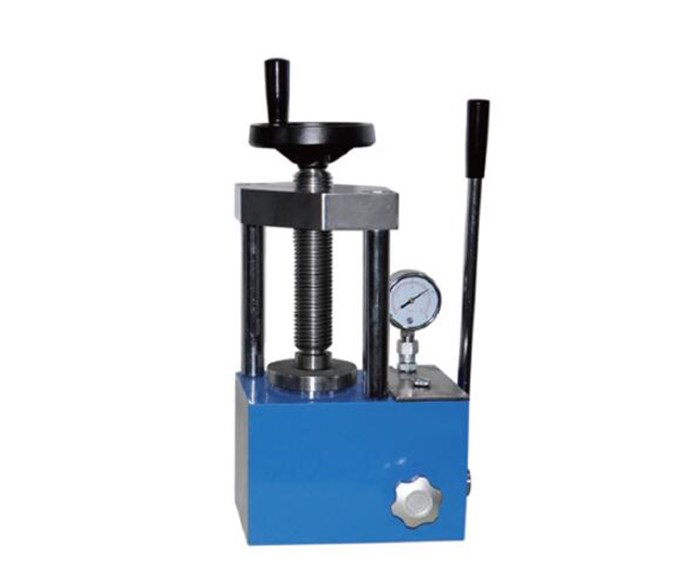

CHY-5T Laboratory 5T Hydraulic Press with Digital Gauge

1.Small size, light weight,No oil linkage, easy to carry.

2.Digital display pressure gauge0.1MPa,Pressure control is more accurate.

Share:
Application
  1. Compound ceramic samples in materials/chemistry research laboratory

  2. Catalytic Reaction

  3. Battery Energy

  4. Cement Ore

Product parameters


Product Name5T manually Hydraulic Press
TypeCHY-5T
Pressure range0-5T(0-31.4MPa)
Piston diameterChrome plated cylinder 70mm
Overall structureUnsealed connection of equipment to reduce leakage

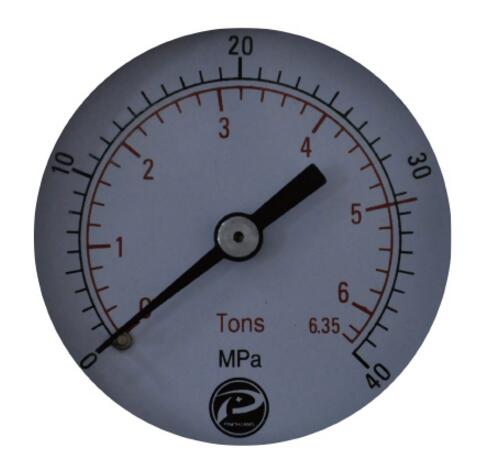

Pressure gaugePressure pressure double scale display
Maximum piston stroke30mm(T)
Pressure stability≤1MPA/10Min
Worktable diameter80mm(D)
Number of columnsTwo pillars
Column spacing96*130mm
Over dimension225*155*380mm
Weight28kg


Pressure Conversion


Real PressureSystem PressurePressure Gauge
0.2Ton1.25MPa CHY-5T Laboratory 5T Hydraulic Press with Digital Gauge
0.4Ton2.51MPa
0.6Ton3.77MPa
0.8Ton5.03MPa
1Ton6.28MPa
2Ton12.5MPa
3Ton18.8MPa
4Ton25.1MPa
5Ton21.4MPa
