PMH-A 13mm FTIR KBr Powder Pellet Pressing Die Set

This 13mm KBr Pellet Press Die Set is a professional manual pressing mold specifically designed for preparing transparent potassium bromide (KBr) pellets used in Fourier Transform Infrared (FTIR) spectroscopy. The die set enables laboratories to convert solid powder samples into uniform

Inquire Now Next Product

Application

KBr Pellet Press Die Set is an indispensable accessory for FTIR spectroscopy across a wide range of analytical and research environments:

Pharmaceutical Analysis: Identification and characterization of active pharmaceutical ingredients (APIs), excipients, and finished drug products; detection of polymorphic forms and counterfeit screening.

Polymer & Materials Science: Qualitative and quantitative analysis of polymer composition, additives, fillers, and degradation products; identification of unknown organic compounds.

Geology & Mineralogy: Analysis of mineral samples, rock powders, and soil extracts for geological surveys and mining exploration.

Forensic Science: Trace evidence analysis including fibers, paints, adhesives, and drug samples for criminal investigation.

Food & Environmental Testing: Detection of contaminants, adulterants, and compositional analysis in food products and environmental samples.

Academic & Industrial R&D: Routine solid sample preparation for structural elucidation, reaction monitoring, and quality control in university and corporate research laboratories.

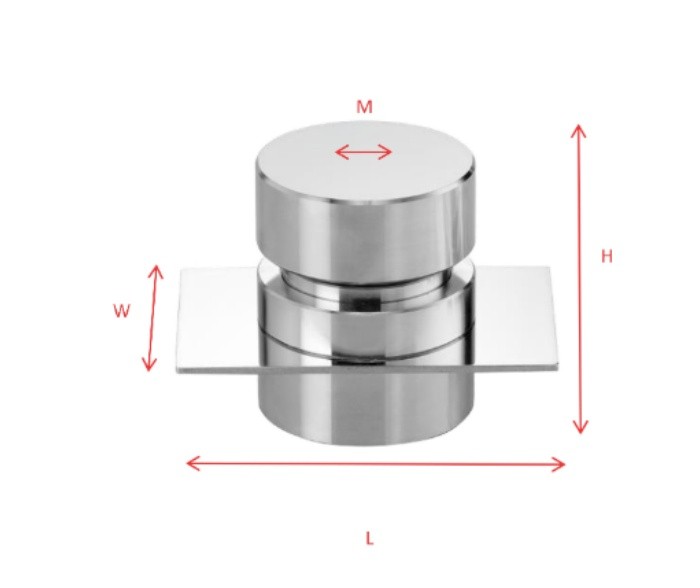

Product parameters

Model	PMH-A
Sample shape
Die material	Tungsten Carbide
Indenter hardness	HRC68-HRC85
Sample size	Φ13mm (M)
Cavity depth	10mm (N)
Dimension	76×50×70mm (L×W×H)
Weight	0.75Kg
