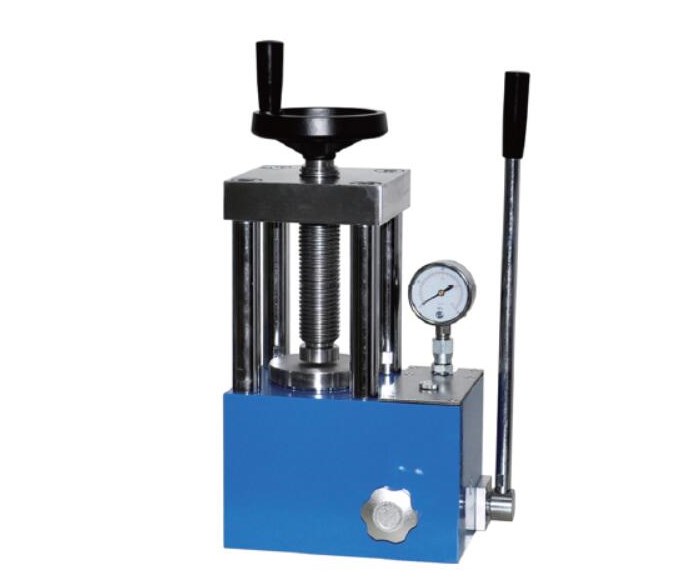

CHY-15T Laboratory Hydraulic Press for Powder Pressing

1.Small size, light weight,No oil linkage, easy to carry.

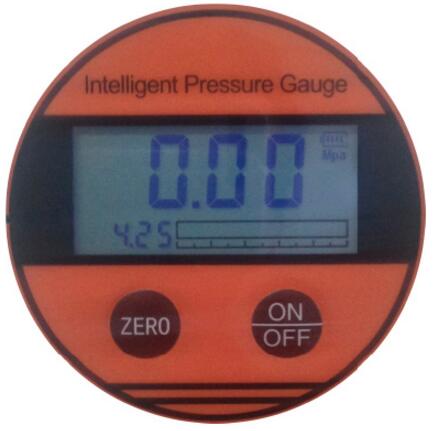

2.Digital display pressure gauge0.1MPa,Pressure control is more accurate.

Share:
Application
  1. Compound ceramic samples in materials/chemistry research laboratory

  2. Catalytic Reaction

  3. Battery Energy

  4. Cement Ore

  5. CR serial Coin Cell Crimping

Product parameters


Product Name15T Laboratory Hydraulic Crimper
TypeCHY-15T
Pressure range0-15T(0-30MPa)
Piston diameterChrome plated cylinder 80mm
Overall structureUnsealed connection of equipment to reduce leakage
Pressure gaugePointer pressure gauge
Maxi Positon Distance30mm
Pressure stability≦1MPa/10min
Working plateO.D90mm
Column quantity4 pieces
Column distance80*130mm

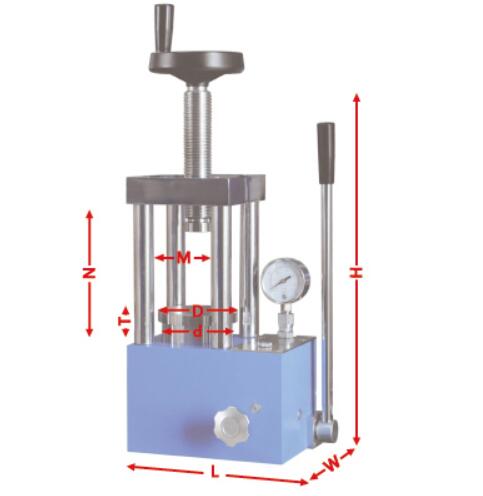

Over dimension245*175*390mm
Weight40kg

Pressure Conversion


Real PressureSystem PressurePressure Gauge
1Ton2MPa CHY-5NS Laboratory Hydraulic Crimper for All Types of Coin Cells
2Ton4MPa
3Ton6MPa
4Ton8MPa
5Ton10MPa
6Ton12MPa
9Ton18MPa
12Ton24MPa
15Ton30MPa
