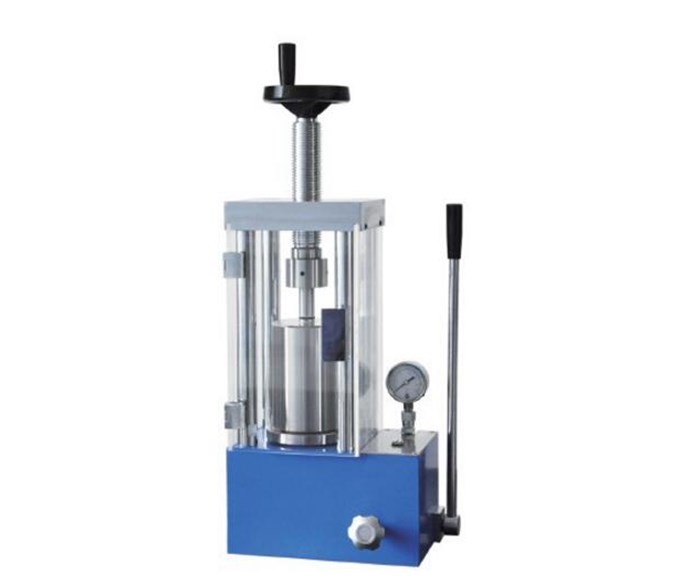

CHY-20J 20 Ton Electric Cold Isostatic Press Machine with O.D30*120 Vessel upto 300MPa

1.Small size, light weight,No oil linkage, easy to carry.

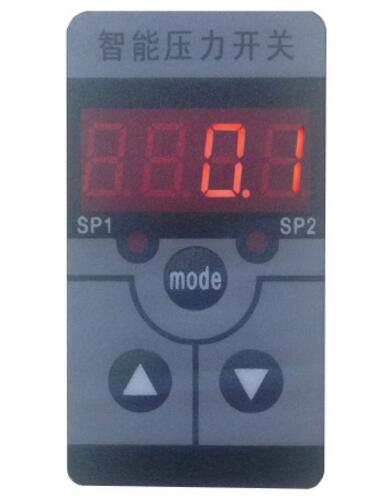

2.Digital display pressure gauge0.1MPa,Pressure control is more accurate.

Share:
Application
  1. Compound ceramic samples in materials/chemistry research laboratory

  2. Catalytic Reaction

  3. Battery Energy

  4. Cement Ore

Product parameters


Product Name20T Cold Isostatic Pressing Machine
TypeCHY-20J
Pressure range0-20T(0-21MPa)
Piston diameterChrome plated cylinder 110mm
Overall structureUnsealed connection of equipment to reduce leakage
Pressure gaugeDigital Gauge 0.0~40.0MPa
Max Piston Distance40mm
CIP pressure0~300MPa
CIP Tank

O.D30*120mm

CHY-60J Laboratory CIP Press with Stainless Steel 22mm ID Vessel

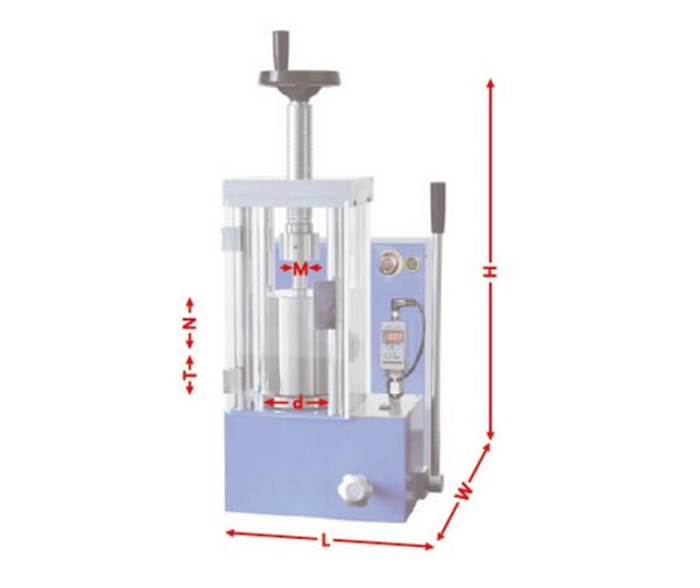

Over Dimension305*430*600mm
Gross weight120Kg

Pressure Conversion

Real PressureSystem PressureChamber PressureDigital Gauge
1.7T1.86MPa25MPa CHY-60J Laboratory CIP Press with Stainless Steel 22mm ID Vessel
3.5T3.72MPa50MPa
5T5.57MPa75MPa
7T7.43MPa100MPa
8.7T9.29MPa125MPa
10.5T11.2MPa150MPa
14T14.8MPa200MPa
17.5T18.6MPa250MPa
21T22.3MPa300MPa
