  • CHY-15T Compact Hydraulic Pellet Press for Glove Box

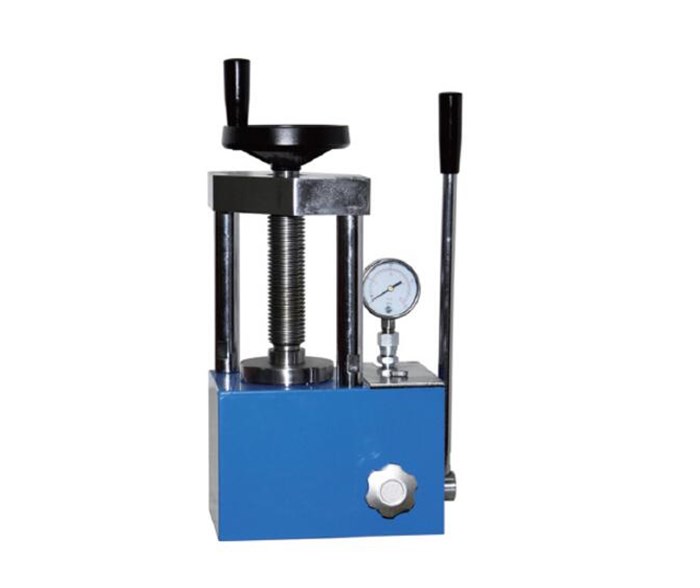

CHY-15T Compact Hydraulic Pellet Press for Glove Box

1.Small size, light weight,No oil linkage, easy to carry.

2.Digital display pressure gauge0.1MPa,Pressure control is more accurate.

Share:
Application
  1. Compound ceramic samples in materials/chemistry research laboratory

  2. Catalytic Reaction

  3. Battery Energy

  4. Cement Ore

Product parameters


Product Name15T Compact Hydraulic Pellet Press
TypeCHY-15B
Pressure range0-15T(0-30MPa)
Piston diameterChrome plated cylinder 80mm
Overall structureUnsealed connection of equipment to reduce leakage
Pressure gaugePressure pressure double scale display
Maximum piston stroke30mm(T)
Pressure stability≤1MPA/10Min
Worktable diameter90mm(O.D)
Number of columnsTwo pillars
Column spacing140*150mm
Over dimension245*175*390mm
Weight38kg

Pressure Conversion


Real PressureSystem PressurePressure Gauge
1Ton2MPa CHY-5T Laboratory 5T Hydraulic Press with Digital Gauge
2Ton4MPa
3Ton6MPa
4Ton8MPa
5Ton10MPa
6Ton12MPa
9Ton18MPa
12Ton24MPa
15Ton30MPa
