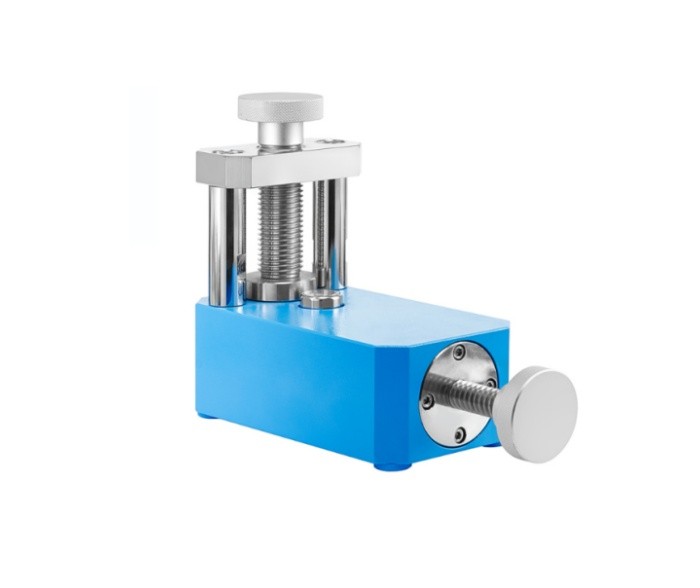

CHY-2T Benchtop Manual Hydraulic Press can be equipped with various dies to form samples of different shapes—such as disks, cylinders, irregular bodies, or composite structures—for scientific research. It can also be used in conjunction with analytical instruments such as Ca-Fe analyzers, infrared spectrometers (IR), and X-ray fluorescence spectrometers (XRF) for post-compaction analysis of the prepared samples.
Compound ceramic samples in materials/chemistry research laboratory
Catalytic Reaction
Battery Energy
Cement Ore
| Instrument Model | CHY-2T |
| Pressure Range | 0-2T (0-20 MPa) |
| Piston Diameter | 35 mm (d) |
| Maximum Piston Stroke | 5 mm (T) |
| Pressure Stability | <1 MPa / 10 min |
| Workbench Diameter | Φ 45 mm (D) |
| Number of Columns | Two |

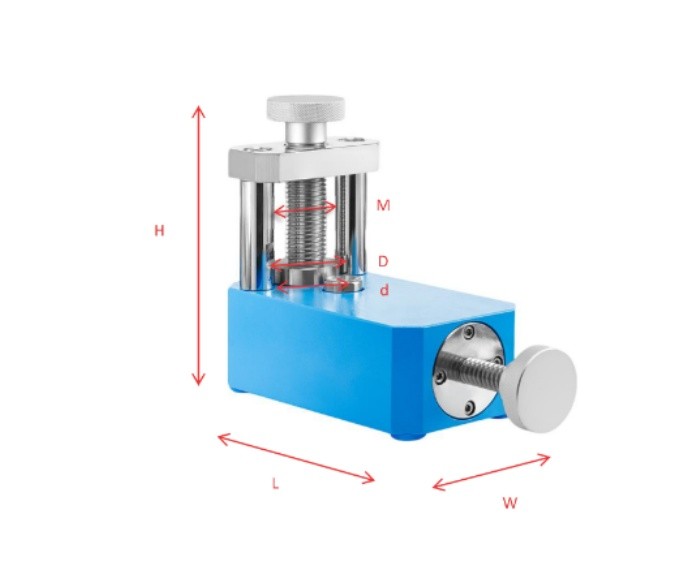

| Working Space | 54 x 55 mm (M X N) |
| Product Dimensions | 100 x 220 x 220 mm (L X W X H) |
| Net Weight | 4.8 kg |
| Packaging Dimensions | 320 x 310 x 190 mm (L X W X H) |
| Gross Weight | 6.5 kg |
