CHY-24T 24 Ton Laboratory Manual Hydraulic Press model features a Φ95mm large-diameter piston coupled with a 4-column guide frame structure. This heavy-duty configuration ensures exceptional platen parallelism and stability under maximum load, preventing deflection and guaranteeing uniform pressure distribution across your samples Whether you are pressing large-diameter pellets or compacting high-density materials, this press delivers consistent, reliable results.
Material Science Research: Compaction of powder ceramics, superconductors, and new materials .
Pharmaceutical & Chemical: Small-scale powder compression and tablet testing.
Educational Institutions: Advanced teaching labs for materials engineering.
FTIR & XRF Sample Preparation: Create high-quality KBr pellets and XRF samples
| Pressure range | 0-24T |
| Piston diameter | Φ 95 mm (d) |
| Integral structure | No sealing connection, oil leakage reduced |
| Pressure gauge | Pressure and pressure intensity display |
| Maximum piston stroke | 30 mm (T) |
| Pressure stability | ≤1 MPa / 10 min |
| Workbench diameter | Φ 105 mm (D) |
| Number of columns | FOUR |
| Working space | 80 x 150mm (M X N) |
| Product Dimensions / Net Weight | 250 x 175 x 415 mm (L X W X H) / 42 kg |
| Packaging Dimensions / Gross Weight | 405 x 330 x 550 mm (L X W X H) / 51kg |

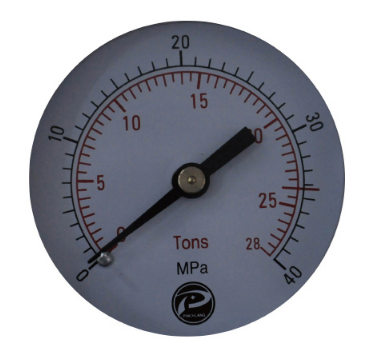

Pressure Conversion
| Force | Pressure | Picture |
| 1[tons] | 1.41 [MPa] |  |
| 2 [tons] | 2.82 [MPa] | |
| 3 [tons] | 4.23 [MPa] | |
| 5 [tons] | 7.06[MPa] | |
| 8 [tons] | 11.3 [MPa] | |
| 10 [tons] | 14.1 [MPa] | |
| 15 [tons] | 21.2 [MPa] | |
| 20 [tons] | 28.3 [MPa] | |
| 24 [tons] | 34 [MPa] |
