CHY-12T 12 Ton Heavy-Duty Laboratory Hydraulic Pressis 12T model features a reinforced integral frame structure engineered to withstand the stresses of repeated high-force operation. The "no sealing connection" design becomes critical at this capacity – by eliminating traditional seal joints, we've created a hydraulic system that maintains integrity under 12 tons of force, drastically reducing the risk of oil bypass and extending operational life.
FTIR and XRF Sample Preparation
KBr Pellet Pressing
General Material Crushing and Testing
Small-scale Laminating
| Pressure range | 0-12T |
| Piston diameter | Φ 70 mm (d) |
| Integral structure | No sealing connection, oil leakage reduced |
| Pressure gauge | Pressure and pressure intensity display |
| Maximum piston stroke | 30 mm (T) |
| Pressure stability | ≤1 MPa / 10 min |
| Workbench diameter | Φ 80 mm (D) |
| Number of columns | TWO |
| Working space | 96 x 130mm (M X N) |
| Product Dimensions / Net Weight | 225 x 155 x 380 mm (L X W X H) / 28 kg |
| Packaging Dimensions / Gross Weight | 405 x 330 x 550 mm (L X W X H) / 39 kg |

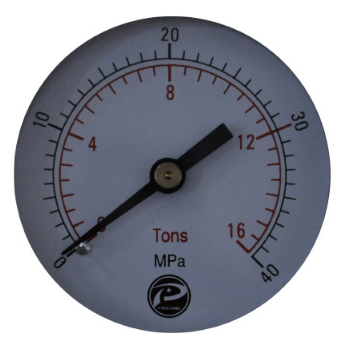

Pressure Conversion
| Force | Pressure | Picture |
| 1[tons] | 2.5 [MPa] |  |
| 2 [tons] | 5 [MPa] | |
| 3 [tons] | 7.5 [MPa] | |
| 4 [tons] | 10[MPa] | |
| 5 [tons] | 12.5 [MPa] | |
| 6 [tons] | 15 [MPa] | |
| 8 [tons] | 20 [MPa] | |
| 10 [tons] | 25 [MPa] | |
| 12 [tons] | 30 [MPa] |
