CHY-3T 3 Ton Manual Hydraulic Press is a robust benchtop solution designed for demanding laboratory sample preparation. Featuring an integral structure that eliminates sealing connections to reduce oil leakage, this 3T press ensures long-term durability. Equipped with a dual-display pressure gauge, it provides precise force monitoring for consistent KBr pellet and XRF sample production. With a maximum piston stroke of 30mm and a stable working platform, it is the perfect upgrade for any research facility requiring reliable 3-ton pressing capacity.
FTIR and XRF Sample Preparation
KBr Pellet Pressing
General Material Crushing and Testing
Small-scale Laminating
| Pressure range | 0-3T |
| Piston diameter | Φ 50 mm (d) |
| Integral structure | No sealing connection, oil leakage reduced |

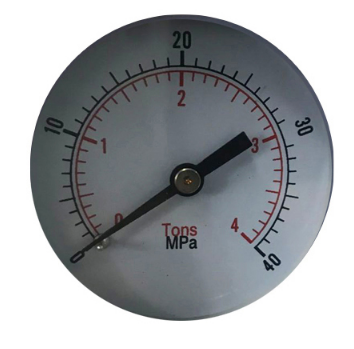

| Pressure gauge | Pressure and pressure intensity display |
| Maximum piston stroke | 30 mm (T) |
| Pressure stability | ≤1 MPa / 10 min |
| Workbench diameter | Φ 80 mm (D) |
| Number of columns | TWO |

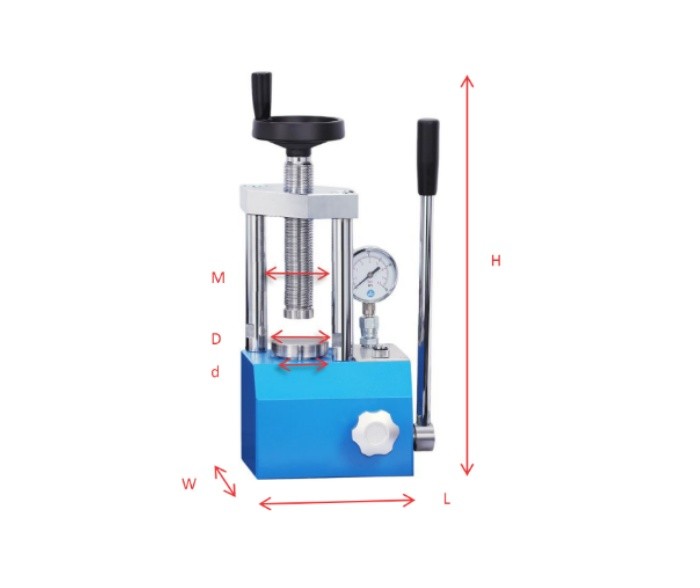

| Working space | 90 x 125mm (M X N) |
| Product Dimensions / Net Weight | 210 x 150 x 360 mm (L X W X H) / 20 kg |
| Packaging Dimensions / Gross Weight | 405 x 330 x 550 mm (L X W X H) / 29 kg |
Pressure Conversion
| Force | Pressure | Picture |
| 0.2 [tons] | 1.90 [MPa] |  |
| 0.4 [tons] | 3.80 [MPa] | |
| 0.6 [tons] | 5.70 [MPa] | |
| 0.8 [tons] | 7.60 [MPa] | |
| 1.0 [tons] | 9.50 [MPa] | |
| 1.5 [tons] | 14.2 [MPa] | |
| 2.0 [tons] | 19.0 [MPa] | |
| 2.5 [tons] | 23.7 [MPa] | |
| 3.0 [tons] | 28.8 [MPa] |
