  • V1250S 1200 degree Mini Vertical Tube Furnace

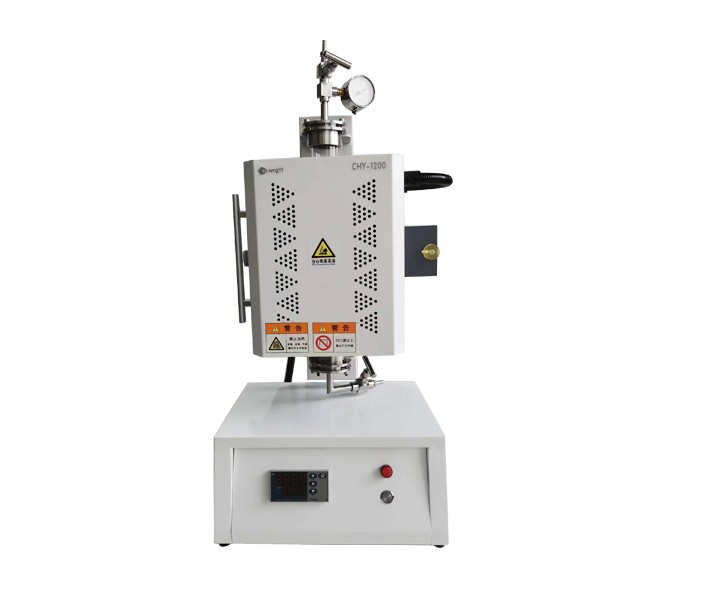

V1250S 1200 degree Mini Vertical Tube Furnace

  1. PID programmable temperature control

  2. Double-layer steel structure with air cooling

  3. The Max. 1100°C working temperature


CHY-V1250S is a compact vertical tube furnace up to 1100°C. It equipped with PID programmable temperatrue controller.The Heating zone is 220mm, suitable for laboratory small sample's annealing,sintering etc.

Product parameters
Furnace DoorOpen Type Furnace
Display ModelHighlight LED display
Maximum Temperature1150℃
Working Temperature≤1100℃
Heating rate≤20℃/min  Suggest:10℃/min
Heating zonesSingle heating zone
Quartz Tube DiameterO.D50*600mm
Heating Zone Length 220mm
Control modeIntelligent PID auto control
Temperature Accuracy±1℃
Temperature curve30 segments programmable
Over heat alarmHave
Overcurrent protectionHave
Thermocouple Failure ProtectionHave
Temperature SensorK-type thermocouple
Heating ElementFe-Cr-Al Alloy doped by Mo
Quartz Tube MaterialHigh Purity Quartz
After-sales service12 month warranty, durable maintaince and repair support
Power Supply220V  50HZ
Rated power0.75kw
AccessoriesProtective Glove,Crucible Tong,Crucible,Quartz Tube,Vacuum Flange,User Manual.
