PID programmable temperature control
PLC Rotation &dipping/pulling control
Double-layer steel structure with air cooling
The Max. 1100°C working temperature
Travel is driven by precision servo motor

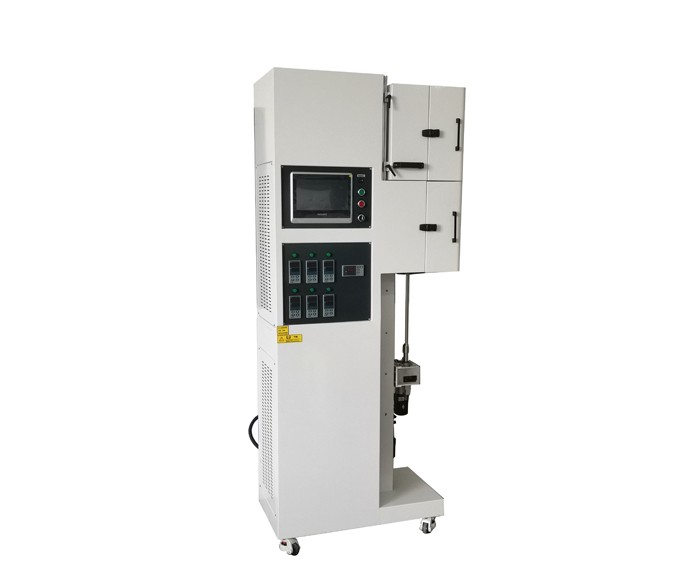

CHY-T1200X-SCB is a compact crystal grower for both CZ and Bridgeman methods up to 1100°C. The precision pulling & rotation mechanism is built on a compact 5 zone vertical tube furnace with PID temperature accuracy control.
| Power | 208-240 VAC, single phase, 50/60Hz |
| Temperature control | PID programmable control with S-type thermcouple are builtin with +/- 0.1ºC accuracy. |
| Heating zone | Five heating zone with OD120mm*200mm Height |
| Pulling Speed | 0.1-10mm/h |
| Pulling distance | 500mm |
| Rotating Speed | 1-50rpm/min |
| Rated Power | 7.5Kw, 3phase |
