  • 1100 ºC Max. Hybrid Compact Crystal Grower For Bridgman CHY- T1200D-SCB

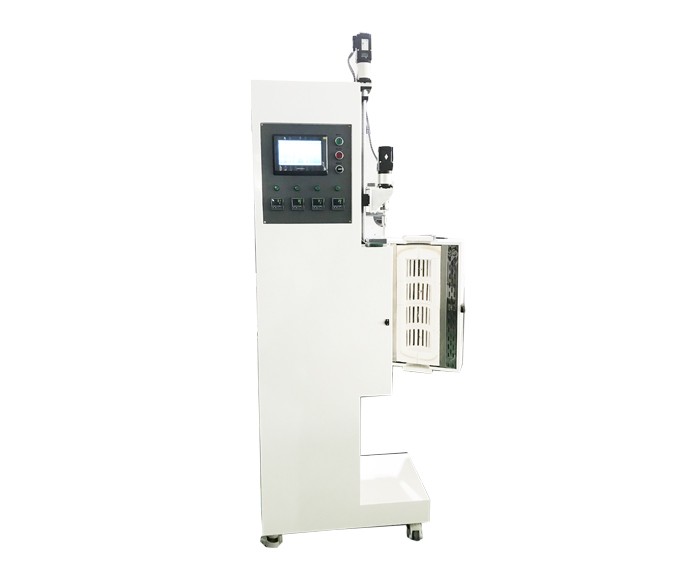

1100 ºC Max. Hybrid Compact Crystal Grower For Bridgman CHY- T1200D-SCB

  1. PID programmable temperature control

  2. PLC Rotation &dipping/pulling control

  3. Double-layer steel structure with air cooling

  4. The Max. 1100°C working temperature

  5. Travel is driven by precision servo motor

Share:
Application


CHY-T1200D-SCB is a compact crystal grower for both CZ and Bridgeman methods up to 1100°C. The precision pulling & rotation mechanism is built on a compact four-zone vertical tube furnace with PID temperature accuracy control.

Product parameters


Power208-240 VAC, single phase, 50/60Hz
Temperature control
PID programmable control with S-type thermcouple are builtin with +/- 0.1ºC accuracy.
Heating zoneFour heating zone with OD80mm*200mm Height
Pulling Speed0.1-10mm/h
Pulling distance
250mm
Rotating Speed0.1-23r/min
Dimension483mm(L) x 380mm(W) x 1760mm(H)
