  • CHY-R1250 Compact Electric Revolve Tube Furnace with 30 segment Controller

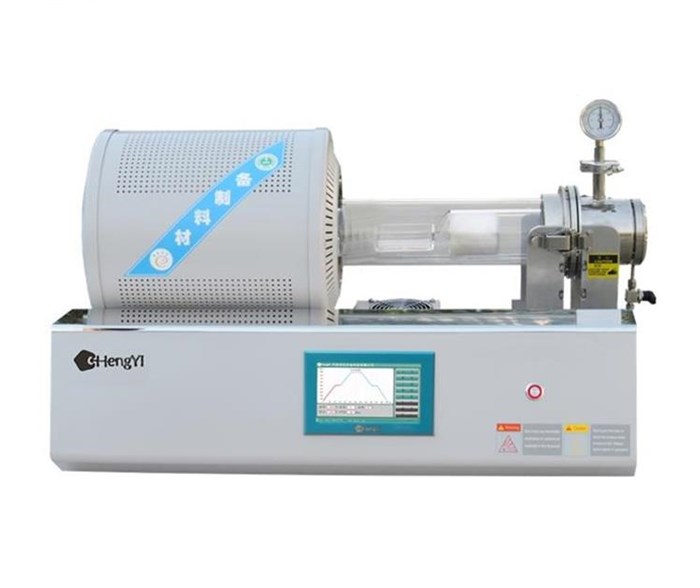

CHY-R1250 Compact Electric Revolve Tube Furnace with 30 segment Controller

1.O.D50*600 high purity quartz tube

2.high quality ceramic fiber chamber

3.PID Programmable controller

4.Heavy duty double layer structure

5.Made by Henan Chengyi


Share:
Application

1.Laboratory heat thermal processing

2.High Vacuum Sintering Heating Annealing Brazing

3.Laboratory Thin Film Preparation,Nano tube growthing

4.Laboratory CVD system,graphene growthing,preparation.


Product parameters
NameMini Revolve Tube Furnace
ModelCHY-R1250
Hearth MaterialImported alumina fiber
Heating ElementFe-Cr-Al-Mo wire (OCr27Al7Mo2)
Maximum Temperature1200℃
Working Temperature≤1150℃
Heating rate≤20℃/min(Suggest:10℃/min)
Heating zone length200mm
Constant temperature zone length80mm
Tube diameter

high purity quartz Φ50*600mm

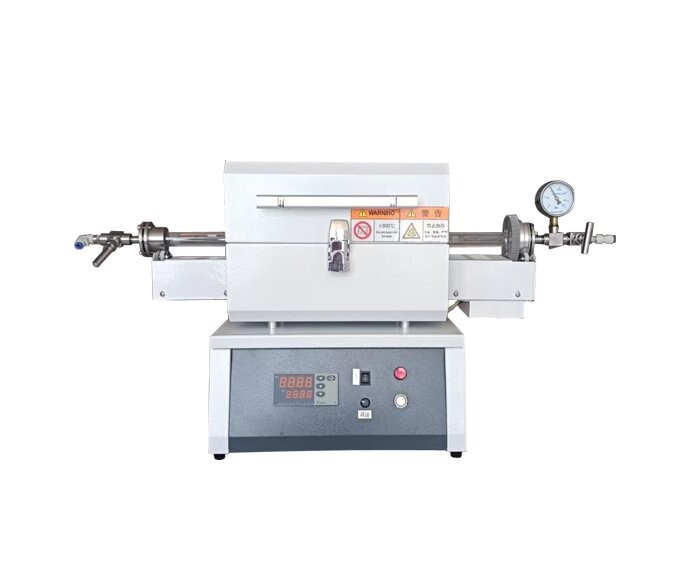

CHY-R1250 Compact Electric Revolve Tube Furnace with 30 segment Controller

Rotating angle0-360° adjustable
Sealing Methodstainless steel vacuum flange
Vacuum Air-tightness9.8×10-4Pa
Control modeIntelligent PID auto control with over-current protection, overheating and thermocouple alarm
Temperature Accuracy±1℃
Power Supply220V  50Hz
Rated power1.2KW
CertificationCE certification
Accessories

quartz tube,vacuum flange,tube block,o-ring seal,protective glove,crucible hook

,quartz boat,user manual.

Overall dimensions380×320×430 mm
Net Weight25kg
