CHY-RTP1100 1200 Degree RTP Tube Furnace with O.D100mm Quartz Tube

1.O.D100*1000 high purity quartz tube

2.High quality ceramic fiber chamber

3.PID Programmable controller

4.Heavy duty double layer structure

5.Made by Henan Chengyi


Share:
Application

1.Laboratory heat thermal processing

2.High Vacuum Sintering Heating Annealing Brazing

3.Laboratory Thin Film Preparation,Nano tube growthing

4.Laboratory CVD system,graphene growthing,preparation.

5.Fast Heating/Cooling Sintering


Product parameters
Product Name1200 Degree RTP Tube Furnace
ModelRTP1100
Furnace TypeFast Heating/Cooling Sintering
Display ModelLCD Touch Panel
Maximum Temperature1150℃
Working Temperature≤1100℃
Heating rate≤100℃/Second
Heating zonesSingle heating zone
Quartz Tube DiameterO.D100*1000mm
Inner DiameterI.D 94*1000mm
Heating Zone Length 220mm
Control modeIntelligent PID auto control
Temperature Accuracy±1℃
Temperature curve30 segments programmable
Over heat alarmHave
Overcurrent protectionHave
Thermocouple Failure ProtectionHave
Temperature SensorK-type thermocouple

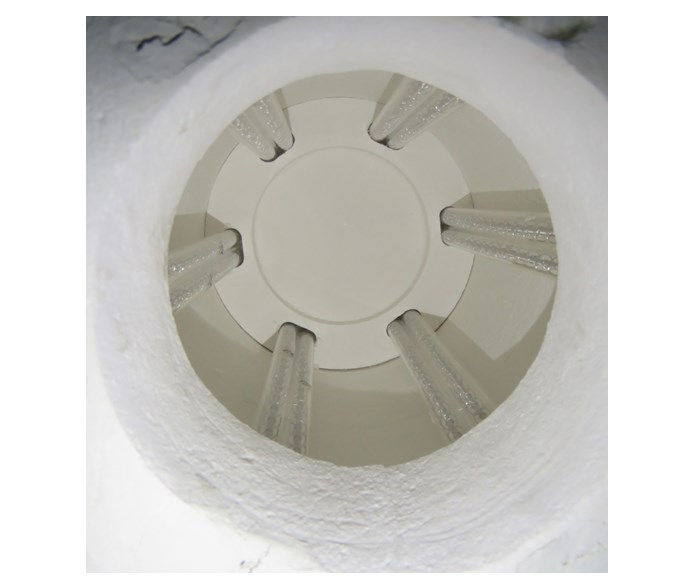

Heating Element

12 pieces Infrared tube

CHY-RTP1100 1200 Degree RTP Tube Furnace with O.D100mm Quartz Tube

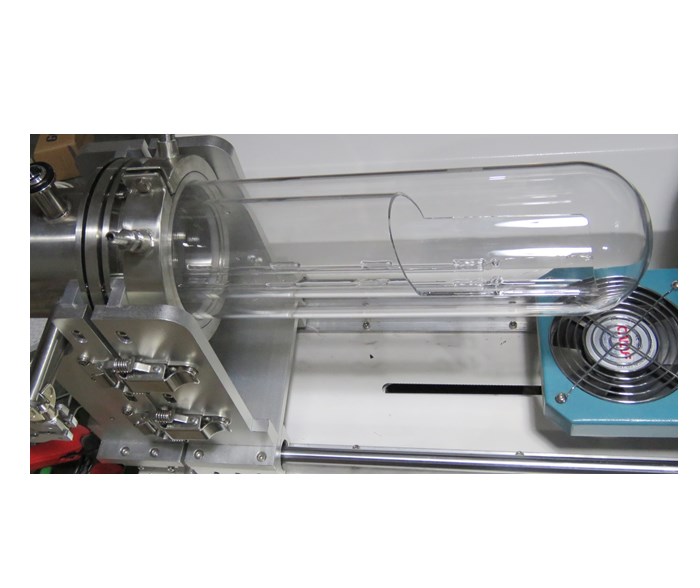

Quartz Tube Material

Double Layer High Purity Quartz


CHY-RTP1100 1200 Degree RTP Tube Furnace with O.D100mm Quartz Tube

After-sales service12 month warranty, durable maintaince and repair support
Power Supply220V  50HZ
Rated power12kw
Overall dimensions800×540×750 (mm )
Packing3-ply wooden case
AccessoriesProtective Glove,Crucible Tong,Crucible,Quartz Tube,Vacuum Flange,User Manual.
