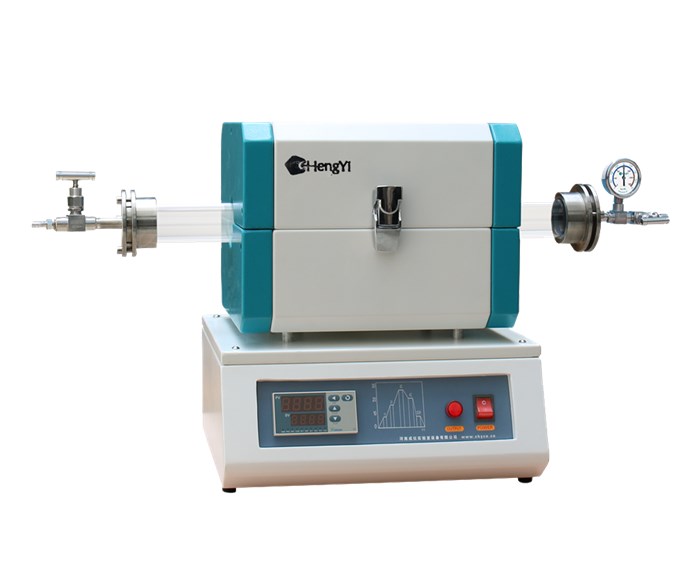

CHY-T1250S Laboratory 1200 degree Mini Tube Furnace

1.O.D50*600 quartz tube chamber

2.High quality ceramic fiber chamber

3.PID Programmable controller

4.Heavy duty double layer structure

5.Made by Henan Chengyi

Share:
Application

1.Laboratory heat thermal processing cement, building materials industry etc

2.Pharmaceutical medicines inspection, preteatment of medical sample

3.Analytical Chemistry Industry: water analysis and environmental analysis

4.Analysis of coal quality,determine moisture, ash, volatile matter, ash melting point analysis, gray component analysis, and elemental analysis


Product parameters
1Product Name1200 Degree Tube Furnace
2ModelT1250S
3Furnace DoorOpen Type Furnace
4Display ModelHighlight LED display
5Maximum Temperature1150℃
6Working Temperature≤1100℃
7Heating rate≤20℃/min  Suggest:10℃/min
8Heating zonesSingle heating zone
9Quartz Tube DiameterO.D50*600mm
10Heating Zone Length 220mm
11Control modeIntelligent PID auto control
12Temperature Accuracy±1℃
13Temperature curve30 segments programmable
14Over heat alarmHave
15Overcurrent protectionHave
16Thermocouple Failure ProtectionHave
17Temperature SensorK-type thermocouple
18Heating ElementFe-Cr-Al Alloy doped by Mo
19Quartz Tube MaterialHigh Purity Quartz
20After-sales service12 month warranty, durable maintaince and repair support
21Power Supply220V  50HZ
22Rated power0.75kw

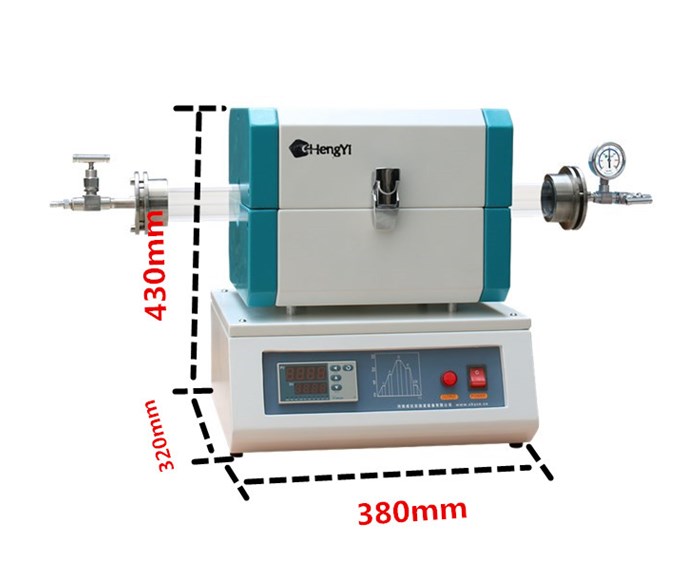

23Overall dimensions380×320×430 (mm )
24Packing3-ply wooden case
25AccessoriesProtective Glove,Crucible Tong,Crucible,Quartz Tube,Vacuum Flange,User Manual.
