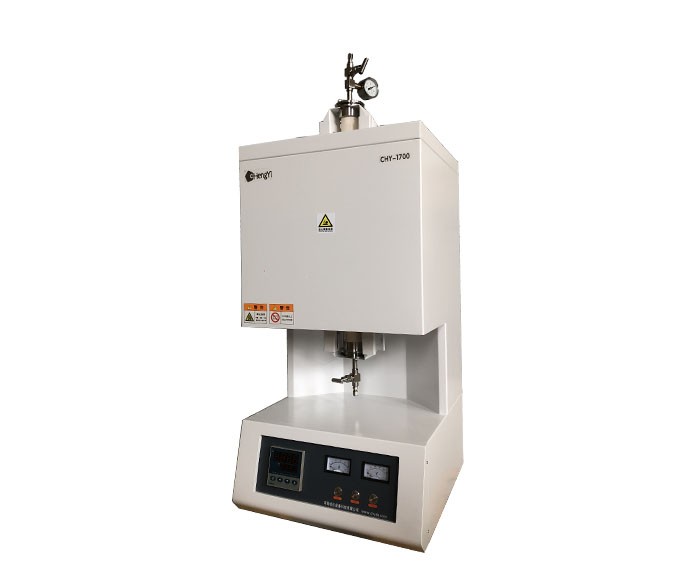

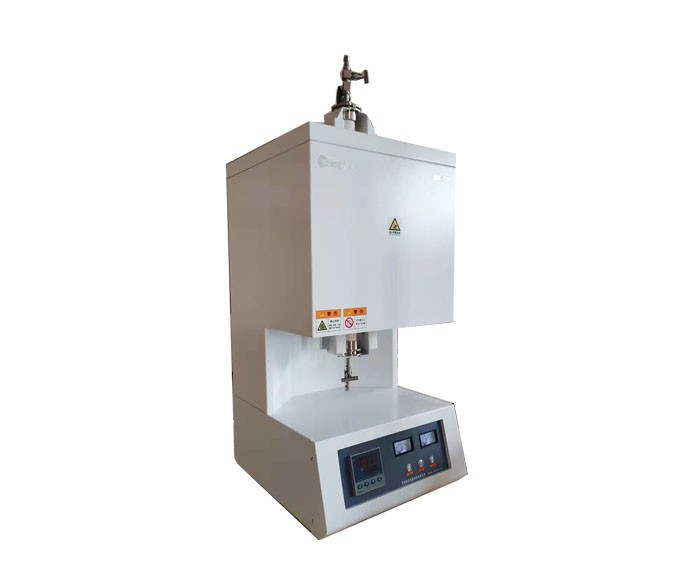

1700 degree Vertical Tube Furnace V1750A

1.Max heating 1650℃

2.PID Programmable controller

3.Alumina tube 50*1000mm

4.Made by Henan Chengyi

Share:
Application

1.Laboratory heat thermal processing cement, building materials industry etc

2.Pharmaceutical medicines inspection, preteatment of medical sample

3.Analytical Chemistry Industry: water analysis and environmental analysis

4.Analysis of coal quality,determine moisture, ash, volatile matter, ash melting point analysis, gray component analysis, and elemental analysis


Product parameters
Product Name Vertical Tube Furnace
Model V1750A
Display Model Highlight LED display
Maximum Temperature 1650℃
Working Temperature ≤1650℃
Heating rate ≤20℃/min  Suggest:10℃/min
Heating zones Single heating zone
Quartz Tube Diameter O.D50*1000mm
Heating Zone Length  300mm
Control mode Intelligent PID auto control
Temperature Accuracy ±1℃
Temperature curve 30 segments programmable
Over heat alarm Have
Overcurrent protection Have
Thermocouple Failure Protection Have
Temperature Sensor B-type thermocouple
Heating Element MoSi2 Heating Road
Quartz Tube Material High Purity Alumina Tube
Power Supply 220V  50HZ
