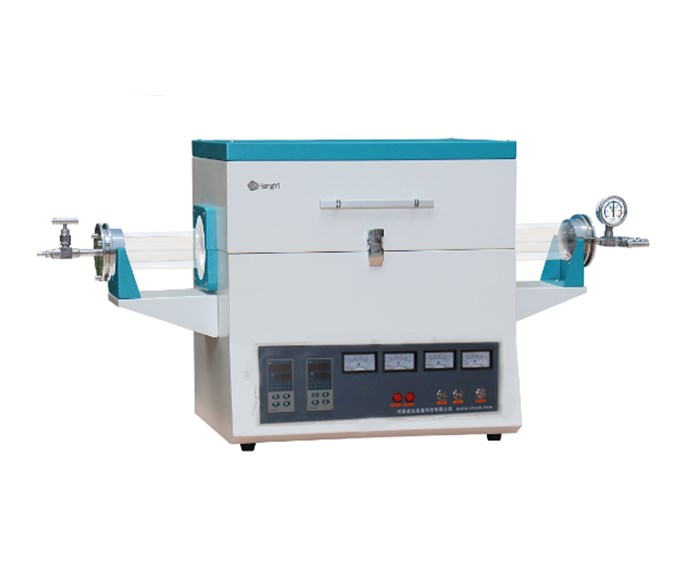

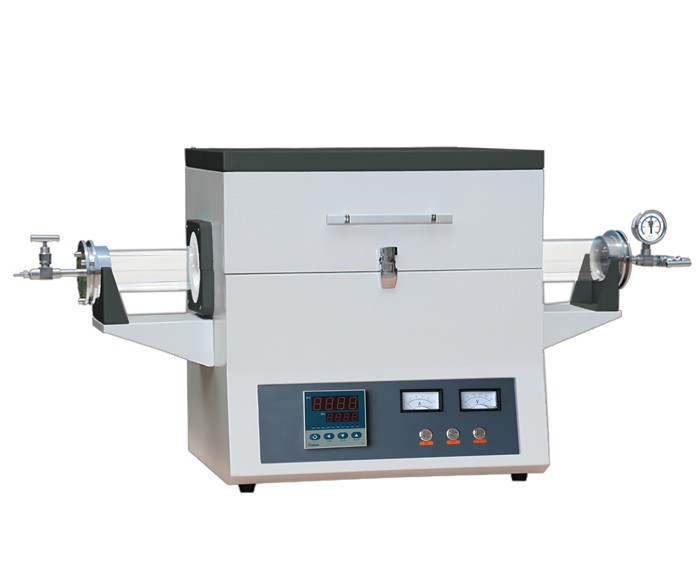

CHY-T1260A Laboratory Vacuum Horizontal Tube Furnace

1.O.D60*1000 quartz tube chamber

2.high quality ceramic fiber chamber

3.PID Programmable controller

4.Heavy duty double layer structure

5.Made by Henan Chengyi


Share:
Application

1.Laboratory heat thermal processing

2.High Vacuum Sintering Heating Annealing Brazing

3.Laboratory Thin Film Preparation,Nano tube growthing

4.Laboratory CVD system,graphene growthing,preparation.

Product parameters
Product Name1200 Degree Tube Furnace
ModelT1260A
Furnace DoorOpen Type Furnace
Display ModelHighlight LED display
Maximum Temperature1150℃
Working Temperature≤1100℃
Heating rate≤20℃/min  Suggest:10℃/min
Heating zonesSingle heating zone
Quartz Tube DiameterO.D60*1000mm
Heating Zone Length 440mm
Control modeIntelligent PID auto control
Temperature Accuracy±1℃
Temperature curve30 segments programmable
Over heat alarmHave
Overcurrent protectionHave
Thermocouple Failure ProtectionHave
Temperature SensorK-type thermocouple
Heating ElementFe-Cr-Al Alloy doped by Mo
Quartz Tube MaterialHigh Purity Quartz Tube
Power Supply220V  50HZ
Rated power3.5kw
Overall dimensions630×470×610 (mm )
AccessoriesProtective Glove,Crucible Tong,Crucible,Quartz Tube,Vacuum Flange,User Manual.
