  • CHY-T1250C Laboratory 1200 Degree Three Zone Vacuum Tube Furnace
  • CHY-T1250C Laboratory 1200 Degree Three Zone Vacuum Tube Furnace

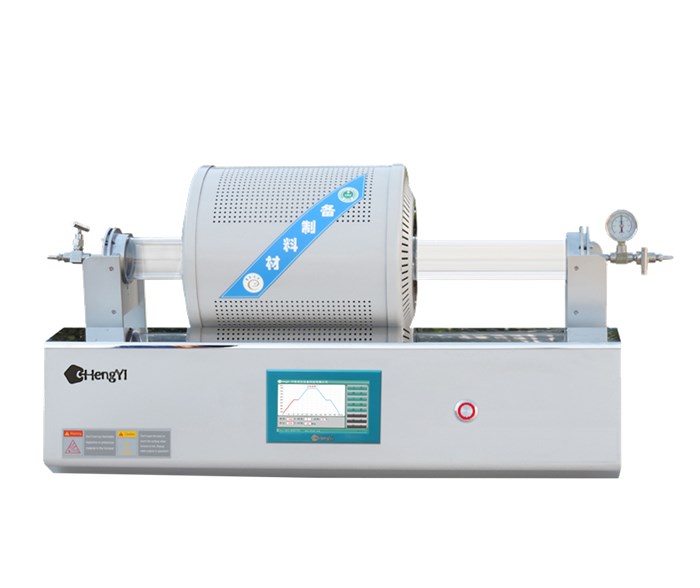

CHY-T1250C Laboratory 1200 Degree Three Zone Vacuum Tube Furnace

1.O.D50*1400 high purity quartz tube

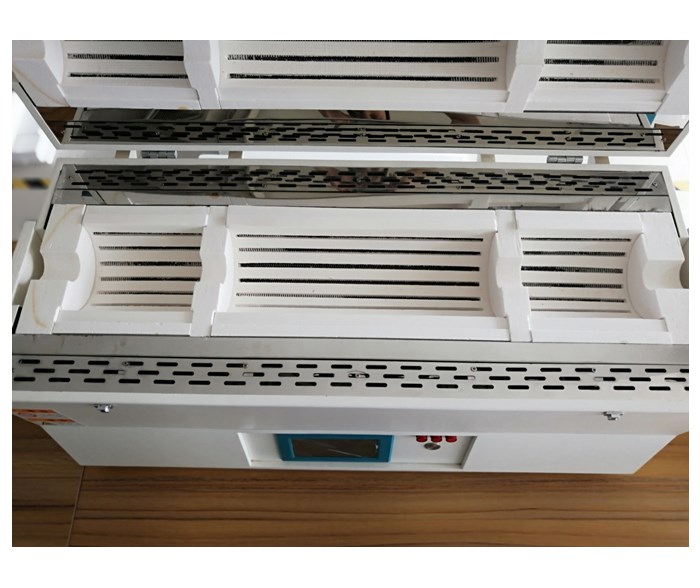

2.High quality ceramic fiber chamber

3.PID Programmable controller

4.Heavy duty double layer structure

5.Made by Henan Chengyi


Share:
Application

1.Laboratory heat thermal processing

2.High Vacuum Sintering Heating Annealing Brazing

3.Laboratory Thin Film Preparation,Nano tube growthing

4.Laboratory CVD system,graphene growthing,preparation.



Product parameters
Product Name1200 Degree Three Zone Tube Furnace
ModelCHY-T1250C
Furnace DoorOpen Type Furnace
Display ModelHighlight LED display
Maximum Temperature1150℃
Working Temperature≤1100℃
Heating rate≤20℃/min  Suggest:10℃/min
Heating zonesSingle heating zone
Quartz Tube DiameterO.D50*1400mm
Inner DiameterI.D 44*1400mm
Heating Zone Length 220+440+220mm
Constant Heating Zone100+300+100mm
Control modeIntelligent PID auto control
Temperature Accuracy±1℃
Temperature curve30 segments programmable
Over heat alarmHave
Overcurrent protectionHave
Thermocouple Failure ProtectionHave
Temperature SensorK-type thermocouple
Heating ElementFe-Cr-Al Alloy doped by Mo
Quartz Tube MaterialHigh Purity Quartz
Power Supply220V  50HZ
Rated power8.0kw
Overall dimensions1060×470×610 (mm )
Accessories

Protective Glove,Crucible Tong,Crucible,Quartz Tube,Vacuum Flange

,User Manual.
