Spinning Speed: 500 ~ 10000 RPM adjustable (adjustment unit 1rpm )
Z-axis stroke: 250mm
Vacuum Chuck Size: 1", 2", 4"
PTFE heating cover, up to 1to 200ºC (be sure to use PTFE chuck for heating)
Pressure Range: -100 ~ 100kPa

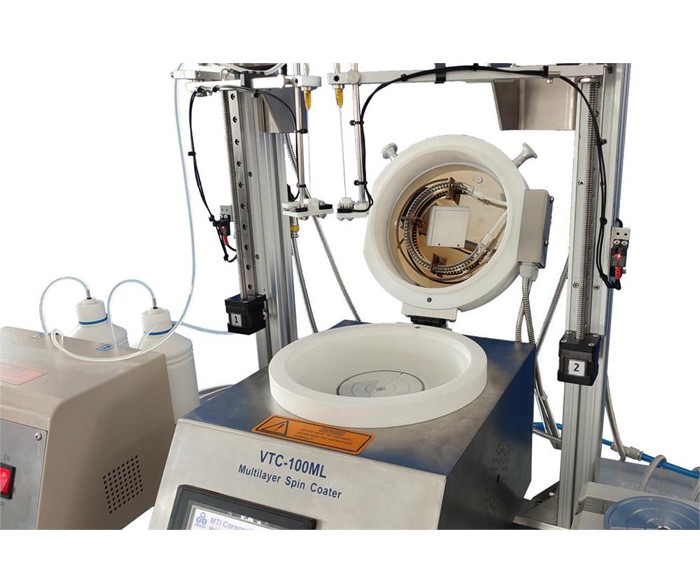

VTC-100ML automatic multi-layer spin coater is suitable for preparation of perovskite materials, semiconductors, optical crystals, and others coatings. It is capable of automatically completing the whole cycle of dispensing, spin coating, and drying processes. Therefore layer-by-layer coating of two different solutions up to 1000 layers to form the target film. The equipment is equipped with vacuum chucks of different sizes for various sample size and heating lamp on the top cover for quickly drying the wet film.
| Power Supply | AC220/110V 50/60Hz |
| Rated Power | Total: 1200W Heating: 800 |
| Spinning Speed | 500 ~ 10000 RPM adjustable |
| Z-axis stroke | 250mm |
| Vacuum Chuck Size | 1", 2", 4" |
| PTFE heating cover | up to 1to 200ºC |
| Pressure Range | -100 ~ 100kPa |
| Controller | A and B two sections of programs, each section contains six segments, and each section can repeat 500 times (for 1000 layers). |
| Dimension | Coater: 450x400x580mm Dispenser: 270x310x280mm |
