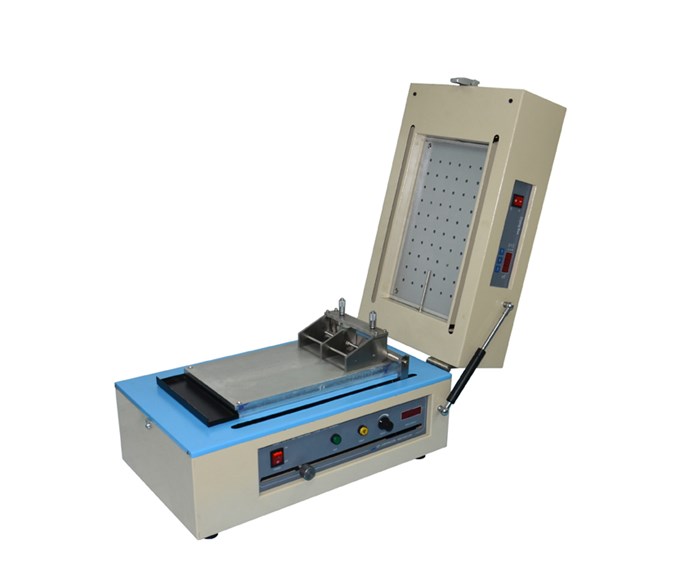

Compact Tape Casting Coater with Vacuum Bed and Film Applicator &100ºC Dryer Cover MSK-AFA-III

  1. Vacuum Bed

  2. Heating Cover

  3. Coating Bed size:365mm(L) x 200mm(W)

Share:
Application

MSK-AFA-III is a CE Certified ready compact tape casting coater with a heating cover designed to produce films with consistent thickness. It has a unique driving system to produce a smooth coating on all types of materials. The flat vacuum chuck is built in to hold the substrate sheet in place.

One 100 mm width adjustable micrometer applicator (doctor-blade).  Heating plate with digital controller either on top or bottom is optional for drying up to 100°C  with +/-1°C temperature accuracy.  This equipment can be used for researchers on ceramic tape castings and Li-Ion battery electrode coating.

Product parameters
Voltage and Power220VAC 1.2KW, 100ºC
Working Power of CoaterPower adaptor: Input 100-240VAC, Output 24VDC
Traverse Speed5 - 100 mm/sec variable.Accuracy: 10mm/sec
Stroke Length10 - 250 mm adjustable by using Adjustable Position Switch
Vacuum chuck

Vacuum chuck made of Aluminum alloy with < 1 mm holes

Vacuum Chuck Dimensions:250mm(L)*200mm(W)

Vacuum Pump120L/min Oilless Vacuum Pump
Heating Cover(Optional)

Pre-installed on the top cover

Built-in digital temperature controller with accuracy of +/-1°C

Suspension support helps open cover easily and safely

Max. Heating Temp.: 100°C

Film Applicator

One 100 mm width micrometer adjustable film applicator is included (thickness adjustable from 0.01 - 3.5 mm)

Travel Pusher and waste plate are included for pushing the Film Applicator

Note:  Thinnest film can be achieved is > 10 microns

ComplianceCE certified
Product Dimensions550mm(L) x  330mm(W) x 320mm(H)
WarrantyOne Year limited warranty with lifetime support
Net Weight86kg
Shipping Weight130kg
