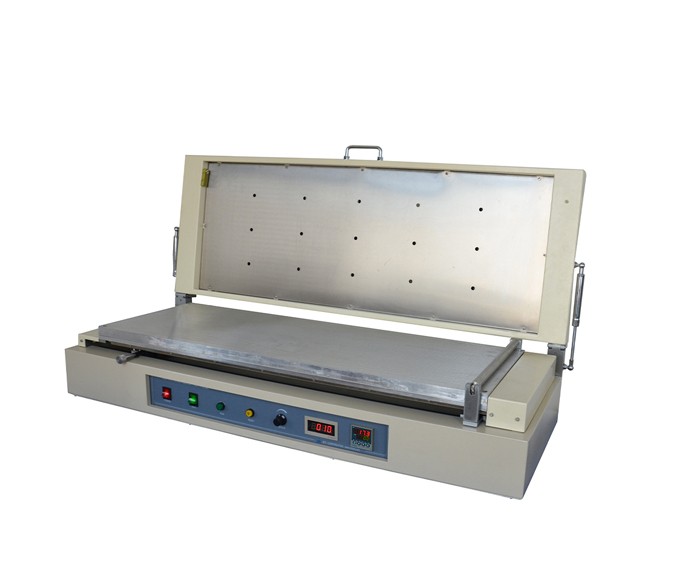

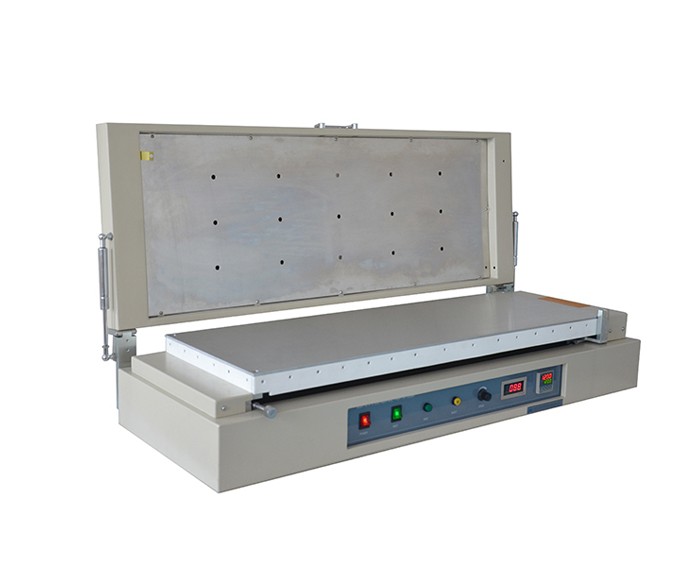

MSK-AFA-L1100 is a 350mm width and 1100mm long tape casting coater with micrometer adjustable applicator. It is designed for producing long thick film and has a unique driving system to produce smooth coating at all types of materials. It is specially designed for coating various electrodes of a cylindrical cell such as the 21700 formats.
| Working Voltage | AC220V INPUT: 24VDC |
| Max. Power Consumption | 100W |
| Traverse Speed | 11~56mm/sec variable· Accuracy: 10mm/sec |
| Max. Coating Dimensions | 10mm-1025mm(L) |
| Platform | 550*1100mm Vacuum Plate |
| Film Applicator |
Note: Thinnest film can be achieved is > 10 micron |
| Product Dimensions | 1345mm(L) x 650mm(W) x250mm(H) |
| Warranty | One Year limited warranty with lifetime support |
| Net Weight | 100 kg |
