Max heating temperature:Rm~200℃
Vacuum range:380*210mm

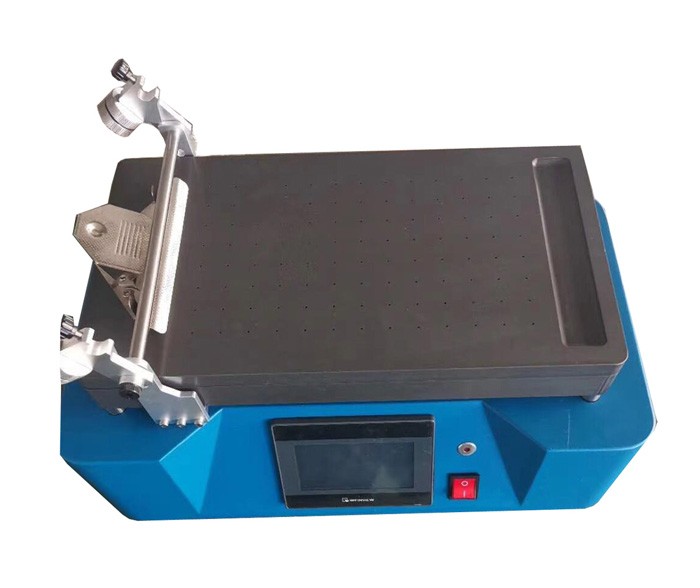

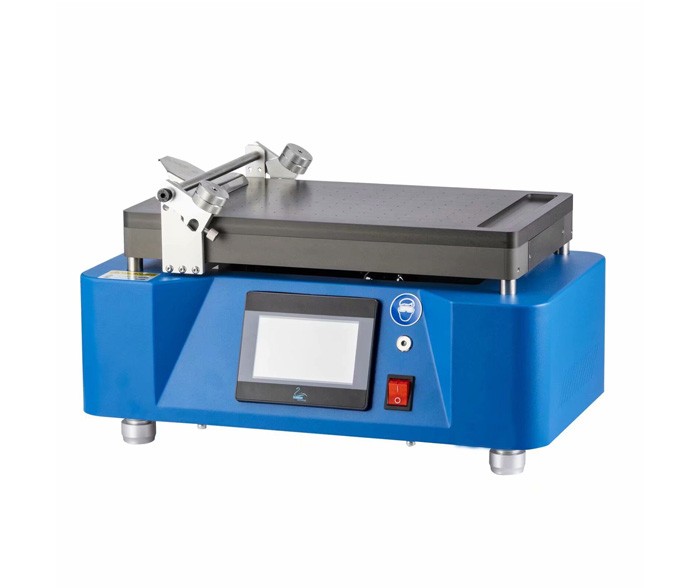

PF200-H is a compact tape casting coater with a bottom heating bed designed to produce films with consistent thickness. It has a unique driving system to produce a smooth coating on all types of materials. The flat vacuum chuck is built in to hold the substrate sheet in place.
| Model No. | PH200-H |
| Film speed | 1-50mm/s, speed regulation accuracy: 1mm/s |
| Maximum stroke length | 250mm |
| Vacuum panel size | 380mm*210mm |
| Heating power | 2KW, 12A, thermal uniformity <±1.5% |
| Heating temperature | RT~200 °C, temperature control |
| Vacuum request | 0.06~0.09MPa, vacuum speed:15L/min |
| Power supply | AC220V/50Hz |
| Dimension | 450*258*249mm |
