  • CHY-60S Laboratory 60T Electric Manually Pallet Press Machine

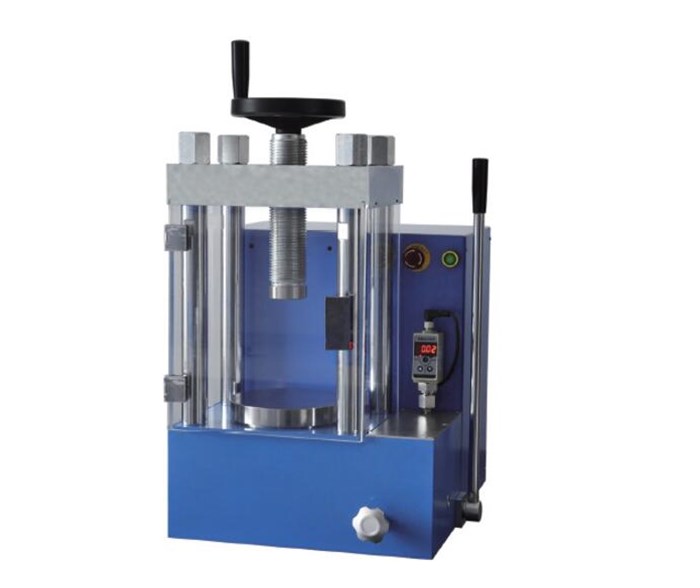

CHY-60S Laboratory 60T Electric Manually Pallet Press Machine

1.Small size, light weight,No oil linkage, easy to carry.

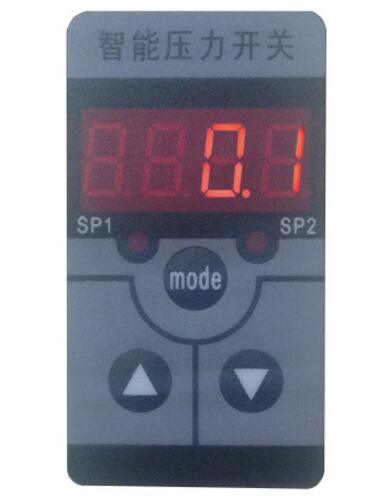

2.Digital display pressure gauge0.1MPa,Pressure control is more accurate.

Share:
Application

1.Compound ceramic samples in materials/chemistry research laboratory

2.Catalytic Reaction

3.Battery Energy

4.Cement Ore

Product parameters


Product Name60T Electric Pressing Machine
TypeCHY-60S
Pressure range

0-40T(0-33MPa)

Piston diameterChrome plated cylinder 150mm
Overall structureUnsealed connection of equipment to reduce leakage
Pressure gaugeDigital Gauge
Pressing methodElectric/Manually
Maximum piston stroke50mm(T)
Pressure stability≤1MPA/10Min
Worktable diameter160mm(O.D)
Number of columnsFour Column
Column spacing185*250mm
Protective CoverNot Have
Over dimension405*470*565mm
Weight140kg
Power supplyAC220V 50Hz

Pressure Conversion


Real PressureSystem PressurePressure Gauge
1Ton0.56MPa CHY-20S Laboratory 20T Electric Manually Hydraulic Press with Digital Gauge
3Ton1.7MPa
5Ton2.8MPa
10Ton5.6MPa
20Ton11.3MPa
30Ton17MPa
40Ton22.6MPa
50Ton28.3MPa
60Ton34MPa
