1.Small size, light weight,No oil linkage, easy to carry.
2.Digital display pressure gauge0.1MPa,Pressure control is more accurate.
Compound ceramic samples in materials/chemistry research laboratory
Catalytic Reaction
Battery Energy
Cement Ore

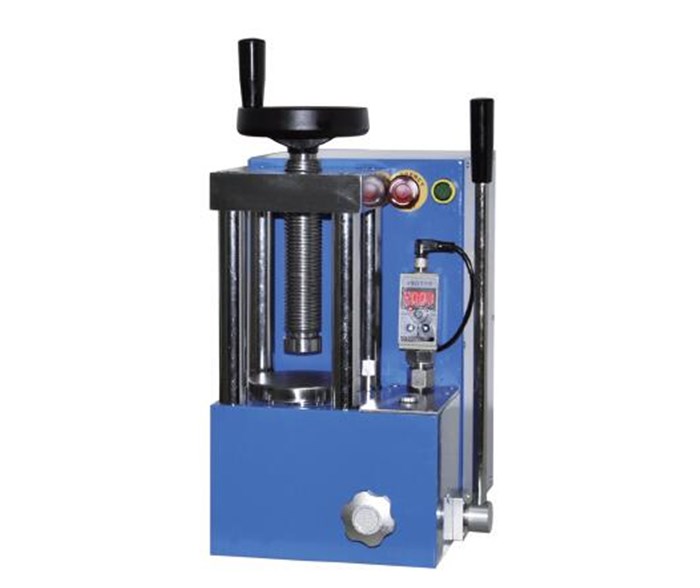

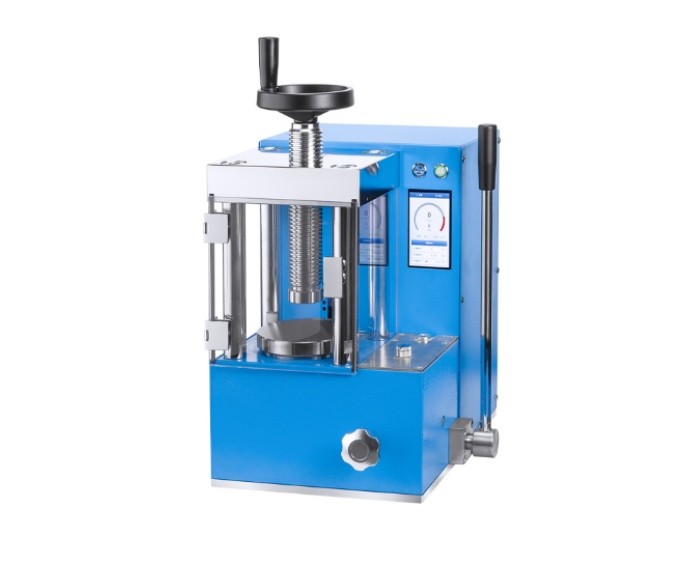

| Product Name | 20T Electric Hydraulic Press | |
| Type | CHY-20S | |
| Pressure range | 0-20T(0-28MPa) | |
| Piston diameter | Chrome plated cylinder 95mm | |
| Overall structure | Unsealed connection of equipment to reduce leakage | |
| Pressure gauge | Digital Gauge | |
| Maximum piston stroke | 30mm(T) | |
| Pressure stability | ≤1MPA/10Min | |
| Worktable diameter | 105mm(O.D) | |
| Number of columns | Four Column | |
| Column spacing | 80*150mm | |
| Protective Cover | Not Have | |
| Over dimension | 245*415*415mm | |
| Weight | 58kg | |
Pressure Conversion
| Real Pressure | System Pressure | Pressure Gauge |
| 1Ton | 1.41MPa |  |
| 2Ton | 2.82MPa | |
| 3Ton | 4.23MPa | |
| 5Ton | 7.06MPa | |
| 8Ton | 11.3MPa | |
| 10Ton | 14.1MPa | |
| 12Ton | 17MPa | |
| 15Ton | 22.6MPa | |
| 20Ton | 28MPa |
