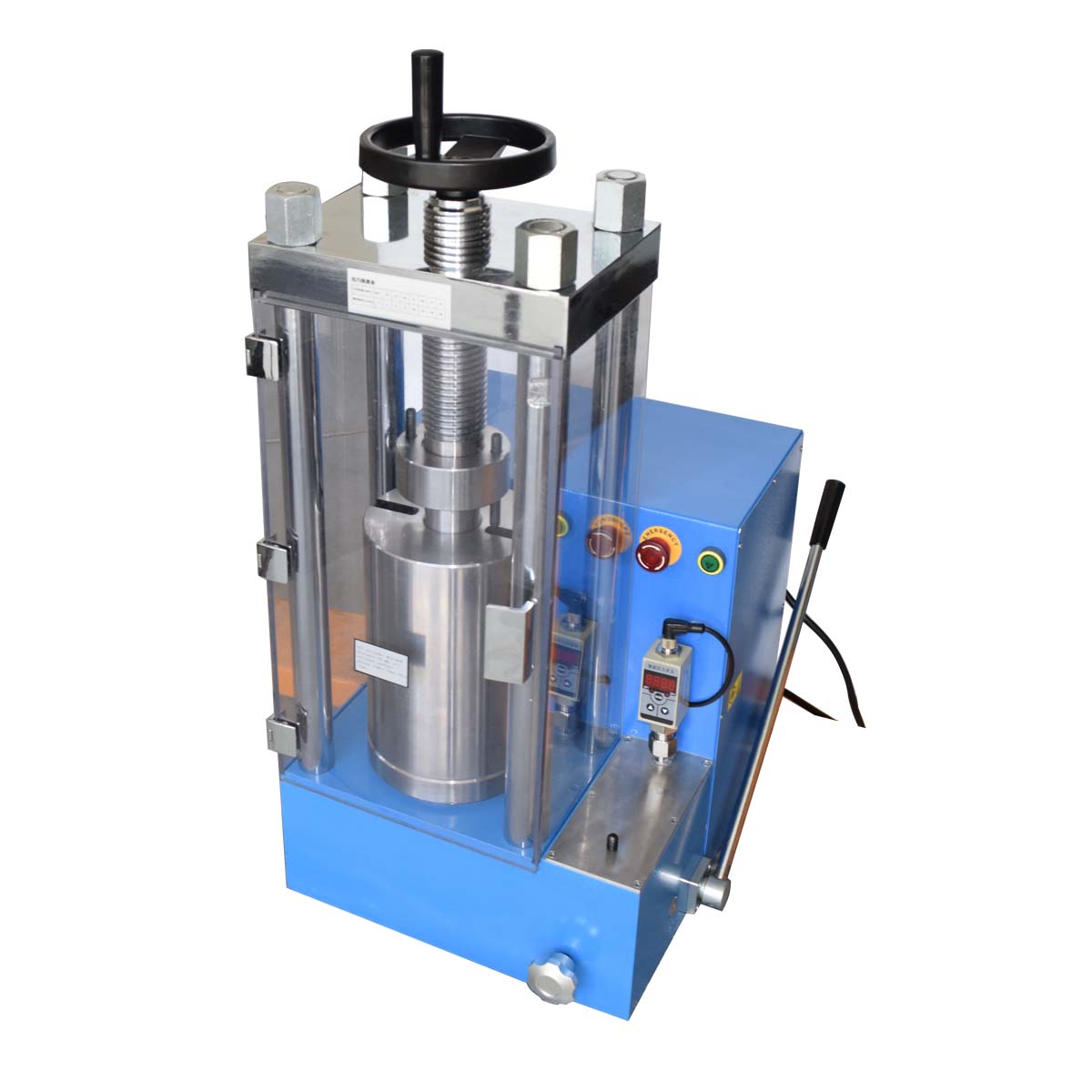

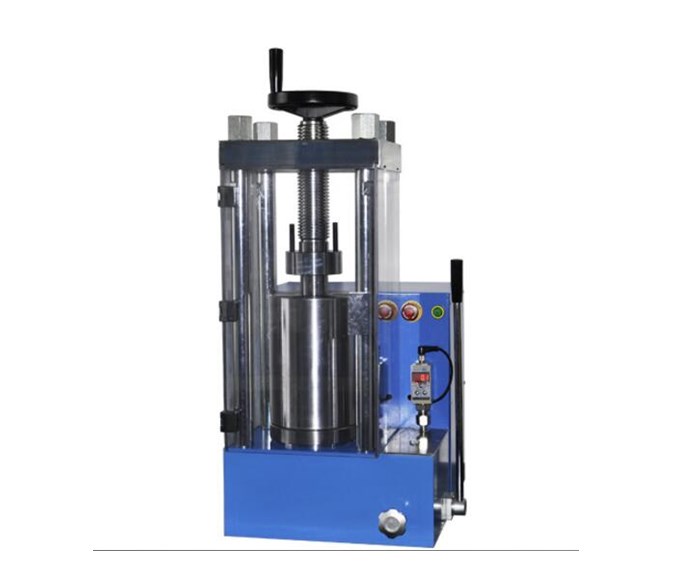

CHY-60J Laboratory CIP Press with Stainless Steel 22mm ID Vessel

1.Small size, light weight,No oil linkage, easy to carry.

2.Digital display pressure gauge0.1MPa,Pressure control is more accurate.

Share:
Application
  1. Compound ceramic samples in materials/chemistry research laboratory

  2. Catalytic Reaction

  3. Battery Energy

  4. Cement Ore

Product parameters


Product Name60T Cold Isostatci Pressing
TypeCHY-60J
Pressure range0-60T(0-34MPa)
Piston diameterChrome plated cylinder 150mm
Overall structureUnsealed connection of equipment to reduce leakage
Pressure gaugePressure pressure double scale display
Max Piston Distance50mm
CIP pressure0~300MPa
CIP Tank

O.D50*150mm

CHY-60J Laboratory CIP Press with Stainless Steel 22mm ID Vessel

Over Dimension405*470*720mm
Power supplyAC 220V
Gross weight200Kg

Pressure Conversion

Real PressureSystem PressureChamber PressureDigital Gauge
5T2.83MPa25MPa CHY-60J Laboratory CIP Press with Stainless Steel 22mm ID Vessel
10T5.66MPa50MPa
15T8.49MPa75MPa
20T11.3MPa100MPa
25T14.1MPa125MPa
30T16.9MPa150MPa
40T22.6MPa200MPa
50T28.3MPa250MPa
60T34.0MPa300MPa
