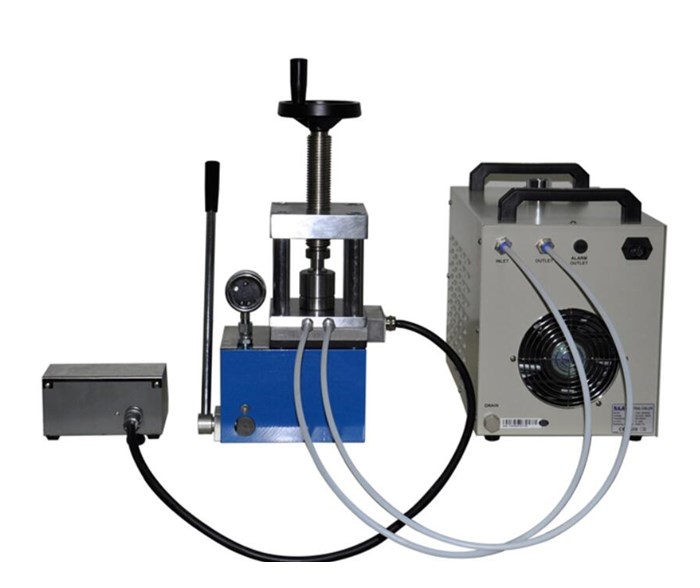

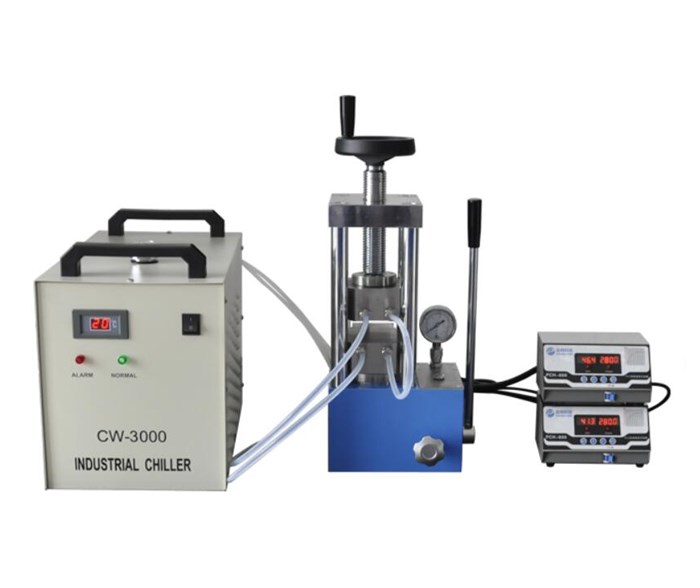

CHY-600C Laboratory 24 Ton Double Heating Press

1.Small size, light weight,No oil linkage, easy to carry.

2.Digital display pressure gauge0.1MPa,Pressure control is more accurate.

Hydraulic hot press is designed for preparing compound ceramic samples in materials/chemistry research laboratories. The press has a built-in hydraulic pump with auto return function for quick die removal & sample retrieval.

Share:
Application
  1. Compound ceramic samples in materials/chemistry research laboratory

  2. Catalytic Reaction

  3. Battery Energy

  4. Cement Ore

Product parameters


Product Name24 Ton Laboratory Double Heating Press

Hydraulic hot press type

CHY-600C
Pressure range0-24T(0-34MPa)
Piston diameterChrome plated cylinder 95mm
Overall structureUnsealed connection of equipment to reduce leakage
Pressure gaugePressure pressure double scale display
Heating rangeRm~300℃
Temperature accuracy0.1℃
Cooling methodWater cooling
Heating Plate Size100*100mm

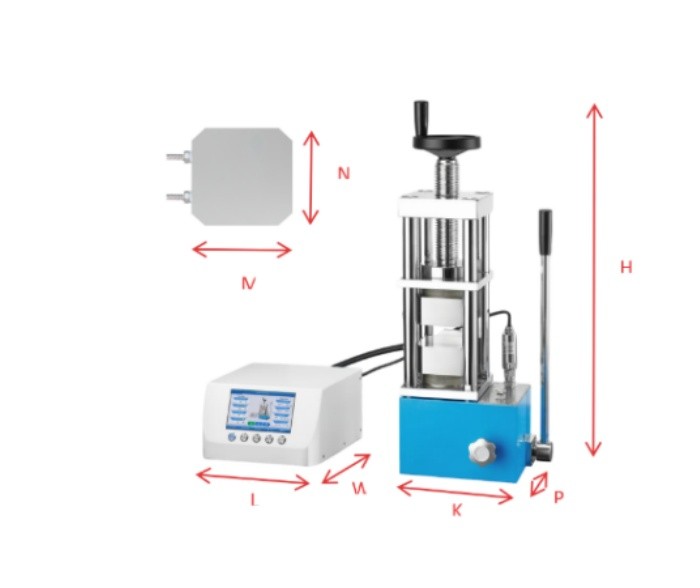

Machine dimension245*175*500mm
Power SupplyAC220V  600W
Gross Weight52Kg

Pressure Conversion

Real PressureSystem PressurePressure Gauge
1Ton1.41MPa CHY-5T Laboratory 5T Hydraulic Press with Digital Gauge
2Ton2.82MPa
3Ton4.23MPa
5Ton7.06MPa
8Ton11.3MPa
10Ton14.1MPa
15Ton21.2MPa
20Ton28.3MPa
24Ton34MPa
