Cylindrical Electric Heating Mold (Model PCH-G) is a professional-grade heated die engineered for laboratory hydraulic press systems. Designed to integrate seamlessly with most standard benchtop presses, this unit allows simultaneous application of heat and pressure, significantly enhancing the efficiency and quality of sample preparation for a wide range of materials including ceramics, catalysts, pharmaceuticals, polymers, battery materials, and metal powders.
Material Science Research: Preparation of pellets for physical property testing, thermal analysis, and structural characterization.
Battery R&D: Compaction of electrode materials (e.g., lithium-ion battery cathodes/anodes) under controlled heat and pressure.
Pharmaceutical Industry: Production of pharmaceutical pellets for dissolution testing and other quality control procedures.
Ceramic & Powder Metallurgy: Consolidation of ceramic powders and metal powders into dense, uniform samples.
Catalyst & Chemical Engineering: Forming catalyst pellets for reactor testing and performance evaluation.
Polymer Processing: Hot pressing of polymers, resins, and composite materials for sample preparation.
FTIR Spectroscopy: Sample preparation for Fourier Transform Infrared spectroscopy analysis.
| Model | PCH-G |
| Sample shape |   |
| Die heating temp. | 0℃-500℃ |
| Die material | Alloy tool steel: 440C |
| Indenter Hardness | HRC60-HRC62 |

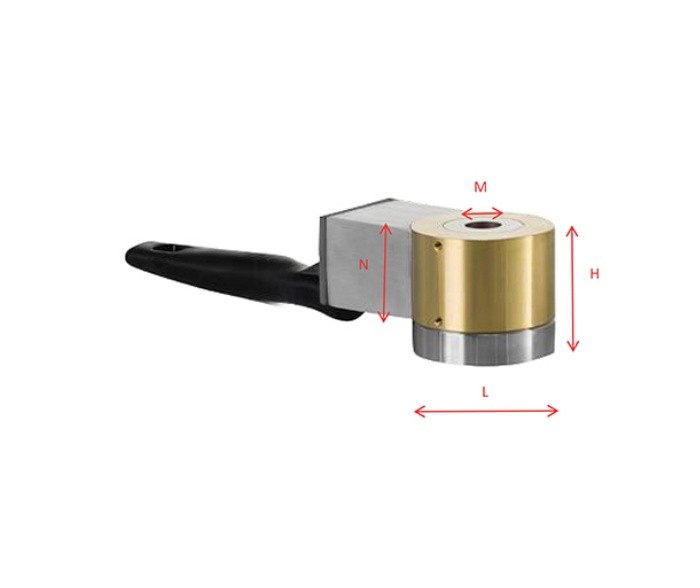

| Sample size | Φ10mm/Φ15mm/Φ20mm/Φ30mm/Φ40mm (M)(Customized size is available ) |
| Cavity depth | 40mm(N) |
| Dimension | Φ78-105 ×138mm (L×H) |
| Power | 500W |
| Voltage | 220V /110V |
| Weight | About 10Kg |
