This 600℃ Single-Plate Electric Hot Press Machine is a compact, manual hydraulic compression system designed for producing high-quality flat samples such as polymer films, composite sheets, and thin‑layer specimens. The machine integrates a single large‑area heating plate directly into the upper press platen, ensuring rapid, uniform heat transfer directly to your material. A sturdy manual hydraulic pump drives the cylinder, making it an ideal stand‑alone hot press for laboratories that require short cycle times, precise pressure application, and a wide temperature range without the complexity of full‑sized industrial presses. An optional circulating water cooling plate can be added to achieve quick sample cooling and increase daily throughput.
single‑plate hot press is widely used for small‑batch sample preparation and material testing in:
Polymer & Plastics Research: Compression molding of thermoplastic films, sheets, and composite laminates for tensile testing, dynamic mechanical analysis, and optical inspection.
Pharmaceutical & Medical Materials: Hot forming of transdermal patches, oral thin films, and bio‑degradable polymer sheets.
Electronics & Energy: Preparation of solid polymer electrolyte membranes, thin battery separators, and conductive polymer films.
Adhesive & Coating Testing: Producing uniform hot‑melt adhesive layers and coatings for peel strength and shear testing.
Composites & Advanced Materials: Consolidation of fiber‑reinforced polymer prepregs and multi‑layer functional films.
Spectroscopy: Creating homogeneous thin films for FTIR and XRF sample analysis.
| Model | PCH-600B | |
| Heating temperature | RT-300℃ | RT-500℃ |
| Power | 0.3 KW | 0.5 KW |
| Pressure range | 0-24T | |
| Pressure Accuracy | 0.01 Ton | |
| Temperature Control accuracy | 0.1℃ | |
| Piston diameter | Chrome-plated oil cylinder Φ95mm(d) | |
| Integral structure | No sealing connection, oil leakage reduced | |
| Constant Temperature Time | ≥1S | |
| Display Screen | 7” Touch Screen | |
| Heating method | Multi-stage Heating or Cooling Program | |
| Heating insulation method | Imported Heating insulation board | |
| Cooling method | Air / Water cooling(water chiller is optional) | |

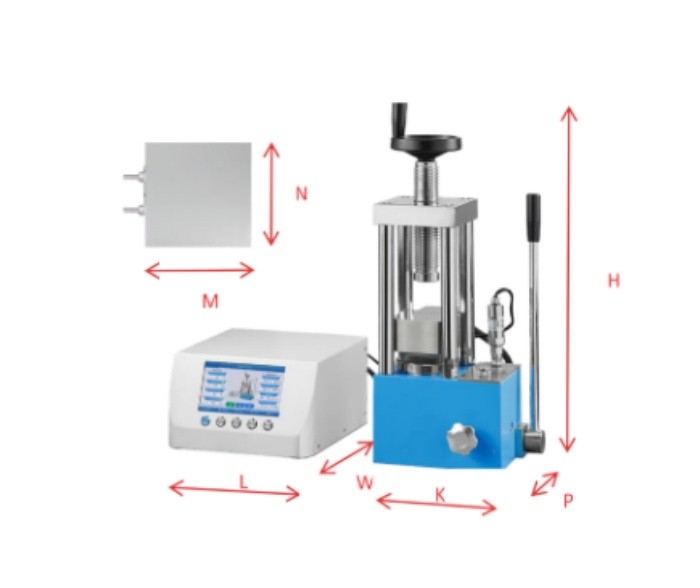

| Heating area | Single platen heating 100×100mm (M×N) | |
| Controlling part | Dimension: 490×395×235mm (L×W×H)Net weight: 9.5KgGross weight :26.5 Kg | |
| Pressing part dimension | 245×175×415mm (K×P×H)Net weight :60KgGross weight: about 100Kg | |
| Water chiller | Dimension : 550×340×430mm Net weight : 11kg | |
| Voltage | 110V / 220V | |
