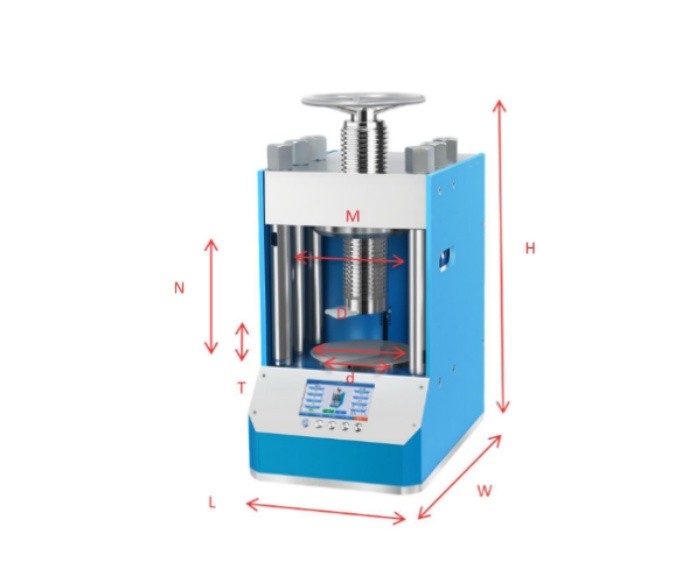

PP-150S 150 Ton Automatic Hydraulic Press Machine

PP-150S Automatic Hydraulic Press. Designed to meet the rigorous demands of modern manufacturing, this 150-ton capacity press offers a perfect balance of power, precision, and automation. It is the ideal solution for businesses engaged in compression molding, powder compacting, laminating, and laboratory R&D.

Inquire Now Next Product

Application

This versatile press is widely used across various sectors:

1.Rubber & Plastics: Vulcanization, molding, and sheet forming.

2.Powder Metallurgy: Compacting metal and ceramic powders into high-density parts.

3.Composite Materials: Laminating and forming carbon fiber or fiberglass.

4.Laboratory: Sample preparation and material testing for R&D departments.

Product parameters

Model	PP-20S	PP-30S	PP-40S	PP-60S	PP-100S
Pressure range	1-20.0T	1-30.0T	1-40.0T	1-60.0T	1-100.0T
Voltage regulation accuracy	0.1t	0.1t	0.1t	0.1t	0.1t
Maximum cylinder stroke	30mm	30mm	50mm	50mm	50mm
Pressure way	Electric pressure
The sample preparation process	Intelligent automatic, program pressure/slow pressure - program pressure holding/pressure supplement - timing pressure relief - demoulding sampling
Display mode	XNNETs 4.3-inch LCD display
The time of holding pressure	999 minutes and 59 seconds
Mold pressure conversion	Program automatic conversion, digital display mold sample pressure (MPa)
Cylinder limit device	Automatic pressure relief protection when the cylinder rises to the limit height
Safety device	Steel plate protection with plexiglass protection door
Overall structure	One-piece structure, no sealing link, reduce oil leakage
Power supply	220V (50 hz / 60 hz)
Workspace	140*160mm	140*160mm	175*180mm	185*220mm	185*250mm
Overall dimensions	230390420mm	230390420mm	280460550mm	300520580mm	330580620mm
Weight	90kg	95kg	150kg	180kg	240kg
