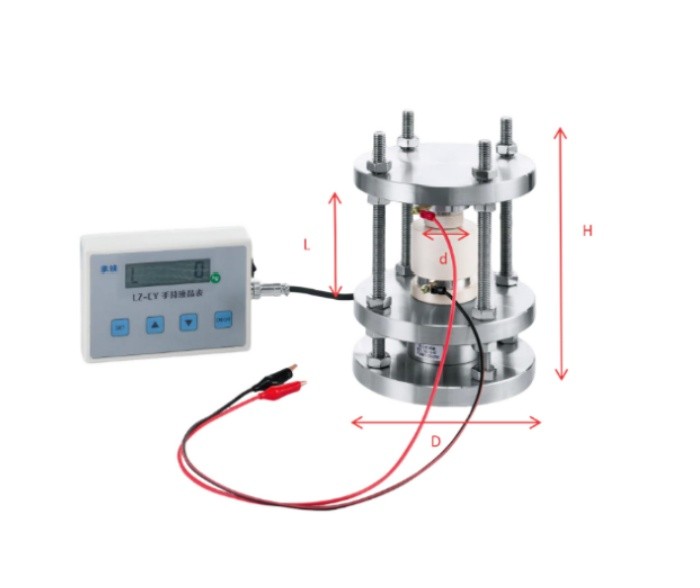

The PMN-JC Pressure Controlled Battery Fixture is designed for laboratory battery sample preparation with pressure control function. Pressure range is 0~5000kg, sample size has Φ10, 12, 12.7, 13, 20mm for option.
Precise Pressure Control: Unlike standard molds, our unit allows for real-time pressure adjustment, ensuring that each electrode or coin cell is produced under identical mechanical stress, drastically reducing experimental variance .
High Sensitivity PMN-PK Material: Utilizing advanced piezoelectric ceramics, the mold responds instantly to mechanical loads, providing accurate feedback for lab-grade consistency.
Robust & Durable Construction: Manufactured from high-strength, corrosion-resistant alloys, this die set is built for thousands of cycles in high-throughput R&D environments.
Instrument model | PMN-JC |
Display pressure | 0-5000kg |
Shelf material | 304 Stainless steel |
Mold material | PEEK Insulating materia! |
Indenter material | 3Cr13 stainless steel |
Sample size | 10/12/12.7/13/20mm |
Die size | 50x90mm |
Boundary dimension | 140x200mm |
Input power | 4AA batteries |
Die weight | 4.5Kg |
