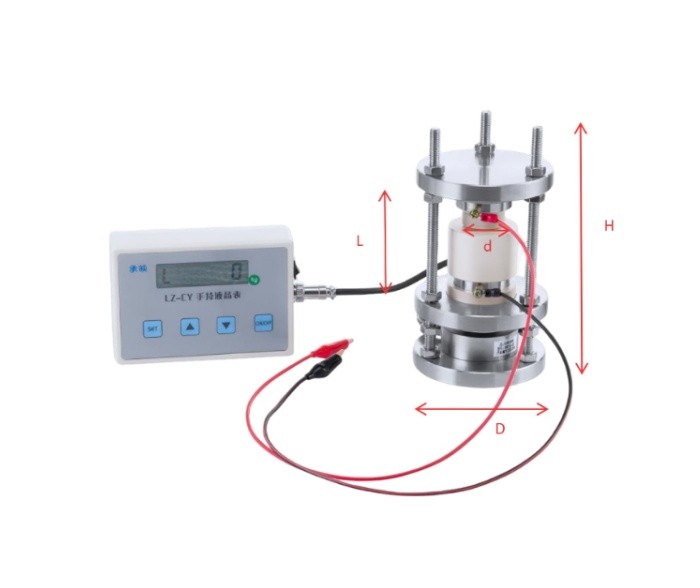

The PMN-JB Pressure Controlled Battery Fixture is designed for laboratory battery sample preparation with pressure control function. Pressure range is 0~5000kg, sample size has Φ10, 12, 12.7, 13, 20mm for option.
The CR16,CR20,CR24,CR30 Coin Cell Battery Sealing Mold features precision design and accurate pressure control. Button cellssuch as CR 2012, CR 2016,CR 2025,CR 2032 and CR 2450 can be packed accurately andreliably.
Instrument model | PMN-JB |
Display pressure | 0-5000kg |
Shelf material | 304 Stainless steel |
Mold material | PEEK Insulating materia! |
Indenter material | 3Cr13 stainless steel |
Sample size | 10/12/12.7/13/20mm |
Die size | 50x90mm |
Boundary dimension | 100x200mm |
Input power | 4AA batteries |
Die weight | 2.8Kg |
