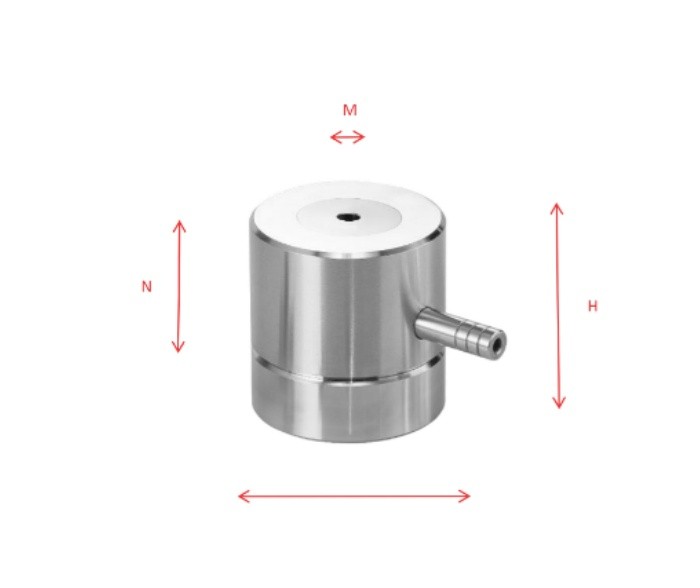

Laboratory Alloy Hydraulic press Pellet Die Set 7mm Φ3mm/Φ4mm/Φ5mm/Φ6mm/Φ8mm/Φ10mm (M) Made of YT15 hard alloy with HRC85-90 hardness. Ensure Accurate and Contamination-Free Pellets.
Materials science – Studying ceramics, polymers, composites, and other solid materials.
Battery material research – Pelletizing electrode materials for performance testing.
Geological and mining samples – Pressing rock powders or soils for mineral analysis.
Chemical industry – Testing catalysts, pigments, and other fine chemicals.
Food and agriculture – Sample preparation for nutritional or contamination analysis.
Academic laboratories – Teaching and experimental sample preparation.
| Model | PMW-A |
| Sample shape |   |
| Die material | Alloy tool steel : Cr12MoV |
| Indenter hardness | HRC85-HRC90 |
| Sample size | Φ3mm/Φ4mm/Φ5mm/Φ6mm/Φ8mm/Φ10mm (M) |
| Cavity depth | 30mm (N) |
| Dimension | Φ43×93mm (L×H) |
| Weight | 0.78Kg |
