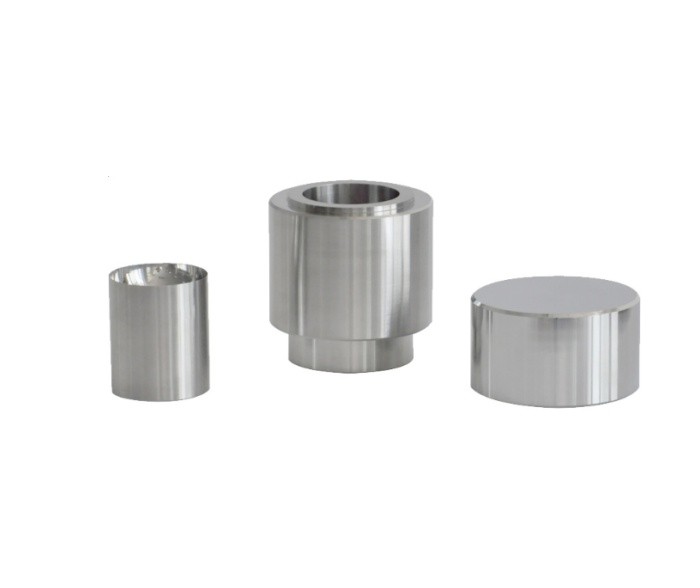

PMQ-B Large Ball Press Die is a premium-quality sample preparation die set engineered for laboratories and industrial R&D facilities requiring precise, reproducible powder pellets for spectroscopic analysis and material testing. Designed with a modular ring system, this die set provides exceptional flexibility, allowing operators to produce pellets of varying diameters using a single base assembly.
Materials science – Studying ceramics, polymers, composites, and other solid materials.
Battery material research – Pelletizing electrode materials for performance testing.
Geological and mining samples – Pressing rock powders or soils for mineral analysis.
Chemical industry – Testing catalysts, pigments, and other fine chemicals.
Food and agriculture – Sample preparation for nutritional or contamination analysis.
Academic laboratories – Teaching and experimental sample preparation.
| Instrument Model | PMQ-B |
| Pressed Sample Shape | Alloy tool steel: Cr12MoV |
| Indenter Hardness | HRC60 - HRC62 |

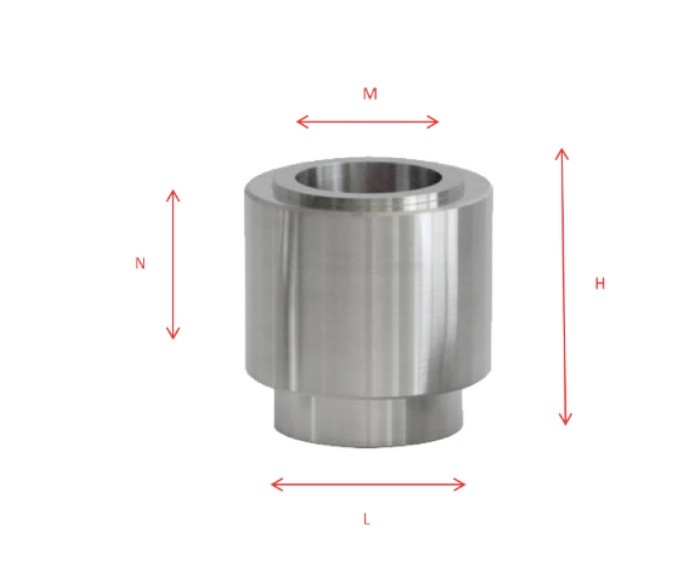

| Sample Size | Φ41-80 mm (M) |
| Cavity Depth | 60 mm (N) |
| Overall Dimensions | Φ88~128 mm x 150mm (L X H) |
| Mold Weight | 5.8kg |
