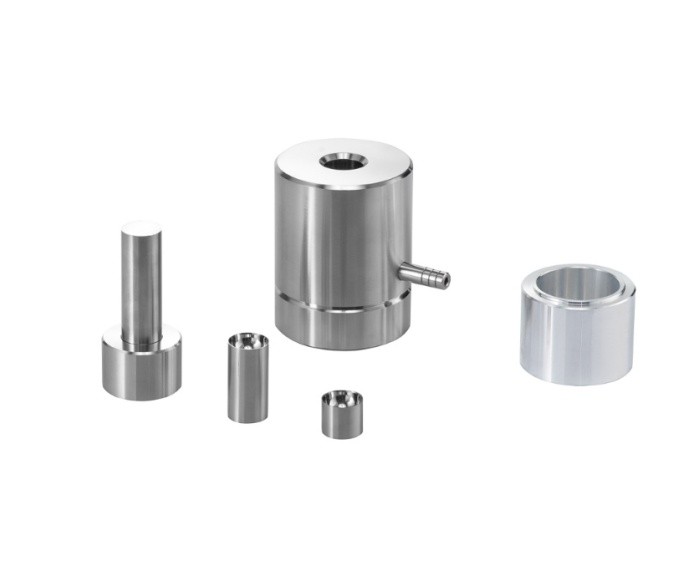

PMQ-A Ball Press Die is a premium-quality sample preparation die set engineered for laboratories and industrial R&D facilities requiring precise, reproducible powder pellets for spectroscopic analysis and material testing. Designed with a modular ring system, this die set provides exceptional flexibility, allowing operators to produce pellets of varying diameters using a single base assembly.
Materials science – Studying ceramics, polymers, composites, and other solid materials.
Battery material research – Pelletizing electrode materials for performance testing.
Geological and mining samples – Pressing rock powders or soils for mineral analysis.
Chemical industry – Testing catalysts, pigments, and other fine chemicals.
Food and agriculture – Sample preparation for nutritional or contamination analysis.
Academic laboratories – Teaching and experimental sample preparation.
| Model | PMQ-A |
| Sample shape | Ball Shape |
| Die material | Alloy tool steel: Cr12MoV |
| Indenter hardness | HRC60-HRC62 |

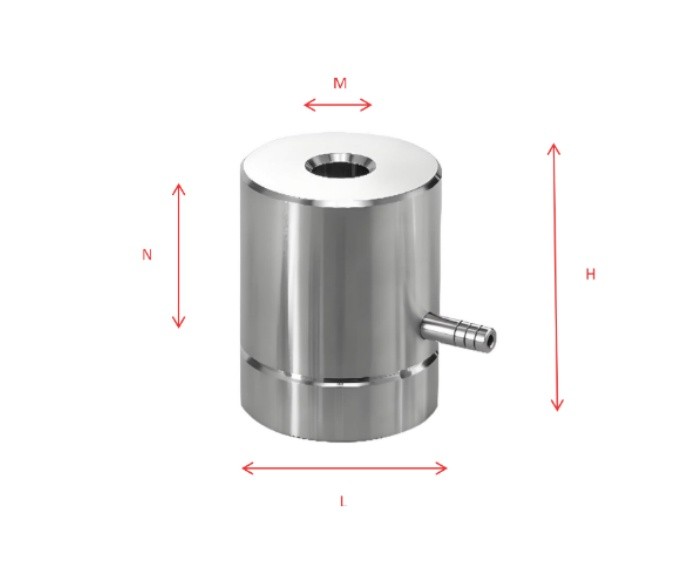

| Sample size | 3mm-40mm Common sizes Such as Φ6mm/Φ8mm/Φ10mm/Φ15mm/Φ20mm(M) |
| Cavity depth | 30-40mm(N) |
| Dimensions | Φ43mm~73mm×73mm(L×H) |
| Weight | 1.5Kg |
