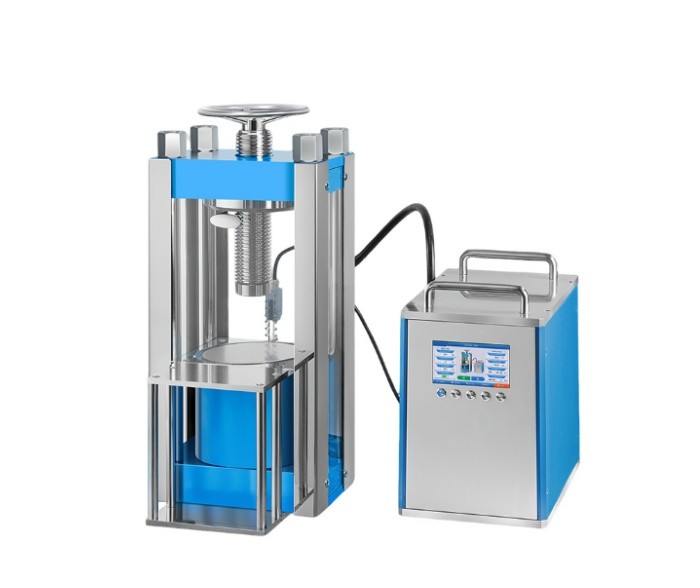

PCD-300S Split Type Electric Powder Press is a heavy-duty hydraulic system built to meet the demanding requirements of industrial manufacturing, materials science laboratories, and advanced R&D centers. Its split-type architecture combines the power of a 300-ton hydraulic system with the precision and safety of a modern automated control platform, enabling consistent, repeatable results for the most challenging powder compaction applications.
1.Compound ceramic samples in materials/chemistry research laboratory
2.Catalytic Reaction
3.Battery Energy
4.Cement Ore
| Model | PCD-300S |
| Pressure range | 0-300.0T |
| Piston diameter | Φ380mm (d) |
| Working process | Programmed pressure relief |
| Pressure holding time | 0-999.59 Sec. |
| Intensity conversion | Automatic conversion of die pressure |
| LCD | 4.3” |
| Equipment protection | Steel plate equipped with plexiglass door |
| Lifting height of cylinder | 390mm (T) Max. |
| Working space | 400*450mm (M*N) |
| Dimension | 620*680*1280mm (L*W*H) |
| Voltage | 220V , 50/60Hz |
| Weight | 2532Kg |
