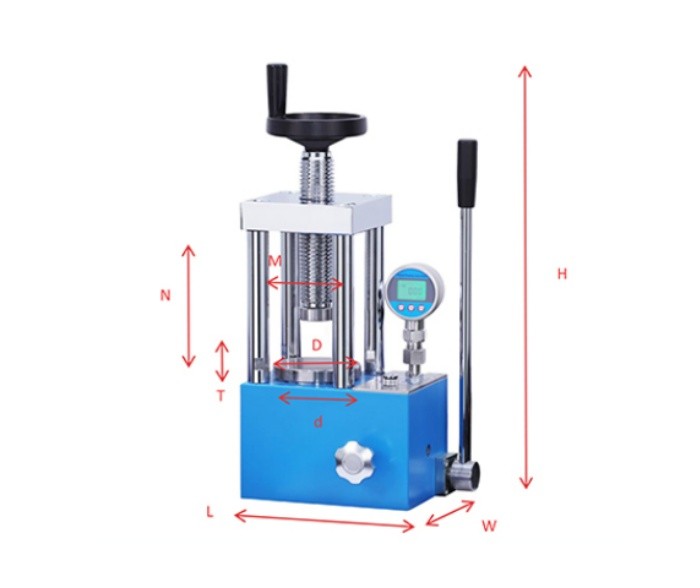

Digital Manual Hydraulic Press is a rugged and reliable lab press designed for safe and precise sample preparation. Featuring a protective acrylic shield, chrome-plated piston, and an integrated leak-free structure, and general material pressing applications in research and educational labs.
Compound ceramic samples in materials/chemistry research laboratory
Catalytic Reaction
Battery Energy
Cement Ore
| Model No. | Pressure range | Piston Diameter | Pressure gauge | Pressure stability | Plate Diameter | Dimension |
| PC-15S | 0~15T(0-30Mpa) | Φ80mm | digital pressure gauge | ≤1MPa/10min | Φ90mm | 245*175*390mm |
| PC-24S | 0~24T(0-34Mpa) | Φ90mm | Φ105mm | 245*175*415mm | ||
| PC-30S | 0~30T(0-31.5Mpa) | Φ110mm | Φ120mm | 275*195*420mm | ||
| PC-40S | 0~40T(0-30Mpa) | Φ130mm | Φ140mm | 295*215*500mm |
