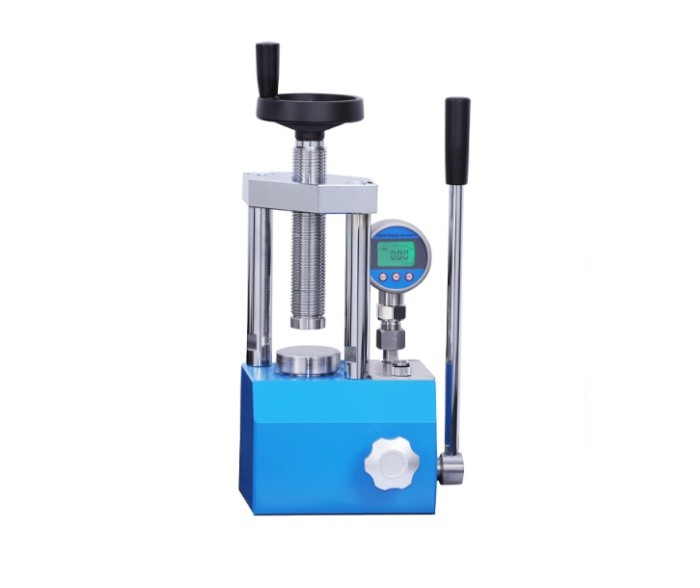

PC-2S 2T Hydraulic Press features a high-precision digital gauge for accurate force display up to 20KN. Perfect for FTIR sample prep, KBr pellet making, and material testing. Its manual operation and durable benchtop design make it an essential tool for any research or quality control lab. Safety shield included.
FTIR and XRF Sample Preparation
KBr Pellet Pressing
General Material Crushing and Testing
Small-scale Laminating
| Pressure range | 0-2T |
| Piston diameter | Φ 32 mm (d) |
| Integral structure | No sealing connection, oil leakage reduced |

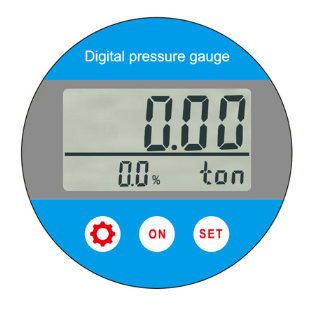

| Pressure gauge | The digtial display shows 0.00-2.00tons |
| Maximum piston stroke | 30 mm (T) |
| Pressure stability | ≤1 MPa / 10 min |
| Workbench diameter | Φ 50 mm (D) |
| Number of columns | TWO |

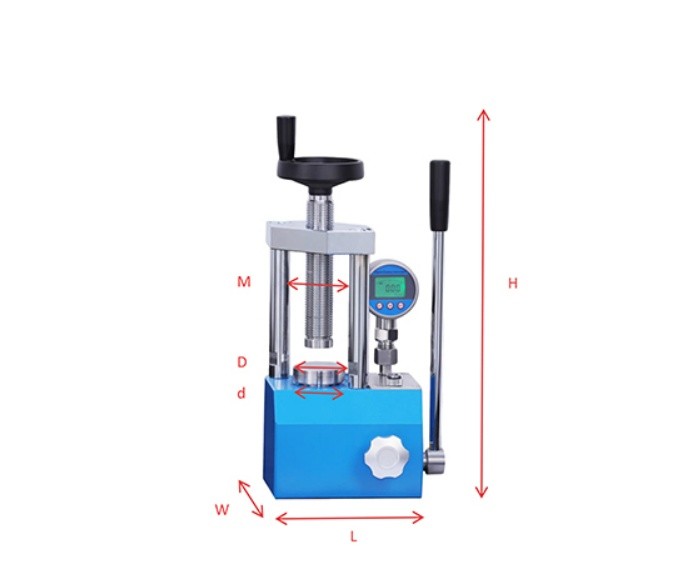

| Working space | 85 x 120 mm (M X N) |
| Product Dimensions / Net Weight | 210 x 150 x 350 mm (L X W X H) / 12 kg |
| Packaging Dimensions / Gross Weight | 405 x 330 x 550 mm (L X W X H) / 21 kg |
Pressure Conversion
| Force | Pressure | Digital pressure gauge |
|---|---|---|
| 0.08 [Tons] | 1 [MPa] |  |
| 0.16 [Tons] | 2 [MPa] | |
| 0.32 [Tons] | 4 [MPa] | |
| 0.48 [Tons] | 6 [MPa] | |
| 0.64 [Tons] | 8 [MPa] | |
| 0.80 [Tons] | 10 [MPa] | |
| 1.20 [Tons] | 15 [MPa] | |
| 1.60 [Tons] | 20 [MPa] | |
| 2.00 [Tons] | 25 [MPa] |
