CHY-30T 30 Ton Laboratory Manual Hydraulic Press model features a Φ95mm large-diameter piston coupled with a 4-column guide frame structure. This heavy-duty configuration ensures exceptional platen parallelism and stability under maximum load, preventing deflection and guaranteeing uniform pressure distribution across your samples Whether you are pressing large-diameter pellets or compacting high-density materials, this press delivers consistent, reliable results.
Material Science Research: Compaction of powder ceramics, superconductors, and new materials .
Pharmaceutical & Chemical: Small-scale powder compression and tablet testing.
Educational Institutions: Advanced teaching labs for materials engineering.
FTIR & XRF Sample Preparation: Create high-quality KBr pellets and XRF samples

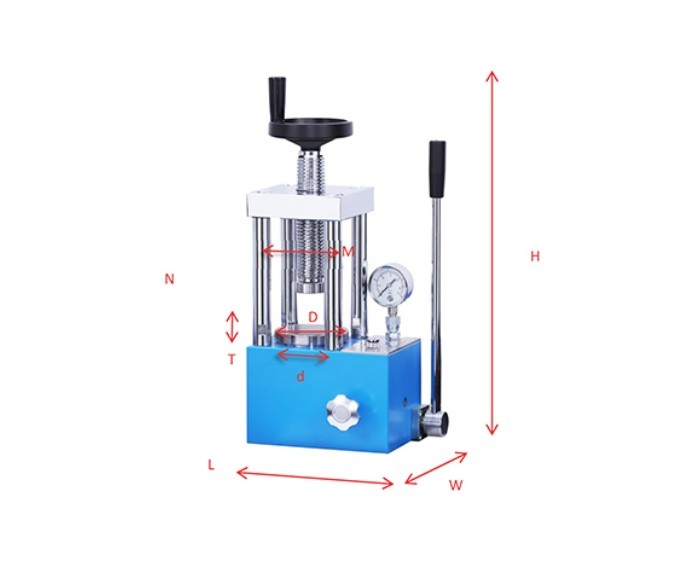

| Pressure range | 0-30T |
| Piston diameter | Φ 110 mm (d) |
| Integral structure | No sealing connection, oil leakage reduced |
| Pressure gauge | Pressure and pressure intensity display |
| Maximum piston stroke | 30 mm (T) |
| Pressure stability | ≤1 MPa / 10 min |
| Workbench diameter | Φ 120 mm (D) |
| Number of columns | FOUR |
| Working space | 92 x 160mm (M X N) |
| Product Dimensions / Net Weight | 270 x 200 x 440 mm (L X W X H) /56 kg |
| Packaging Dimensions / Gross Weight | 405 x 330 x 550 mm (L X W X H) / 65kg |

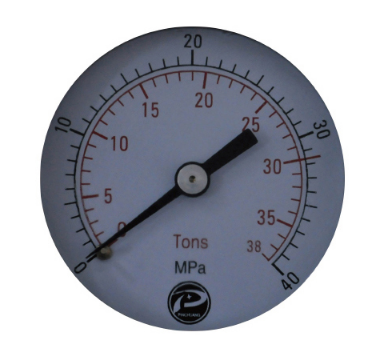

Pressure Conversion
| Force | Pressure | Picture |
| 1[tons] | 1.05 [MPa] |  |
| 3 [tons] | 3.1 [MPa] | |
| 5 [tons] | 5.2 [MPa] | |
| 8 [tons] | 8.4[MPa] | |
| 10 [tons] | 10.5 [MPa] | |
| 15 [tons] | 15.7 [MPa] | |
| 20 [tons] | 21 [MPa] | |
| 25 [tons] | 26.3 [MPa] | |
| 30 [tons] | 31.5 [MPa] |
