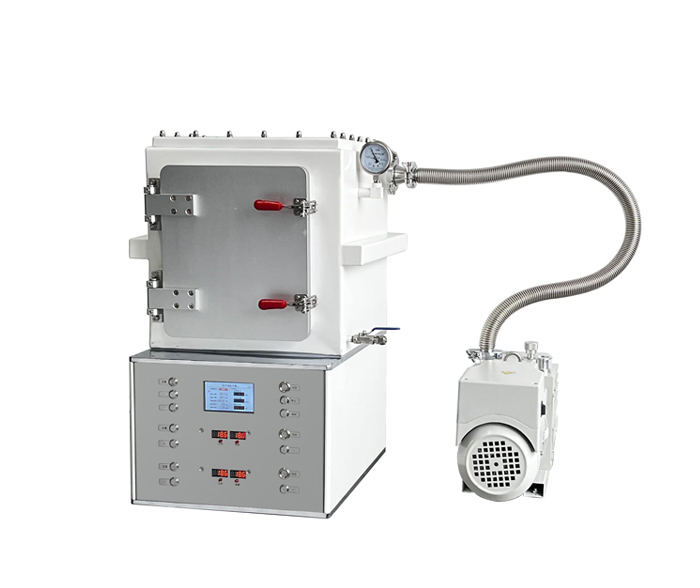

25T Auto Hydraulic Press with Vacuum Chamber is designed for laboratory pressing with vacuum surrounding.The max pressing can upto 25 ton, vacuum level -0.1MPa.
| Model No. | CHY-ZK25T |
| Pressure | 0-25T |
| Pressing Method | Program Pressing-Hold-Release |
| Holding Time | 0-999.59min.second |
| Heating temperature | Max 500℃ |
| Heating plate size | 180*180mm;200*200mm |
| Chamber Material | SUS304 |
| Chamber Size | 400*400*400mm |
| Chamber door | 300*350mm |
| Vacuum degree | -0.1MPa |
| Dimension | 450*550*850mm |
| Power supply | 220V/50Hz |
