1.Small size, light weight,No oil linkage, easy to carry.
2.Digital display pressure gauge0.1MPa,Pressure control is more accurate.

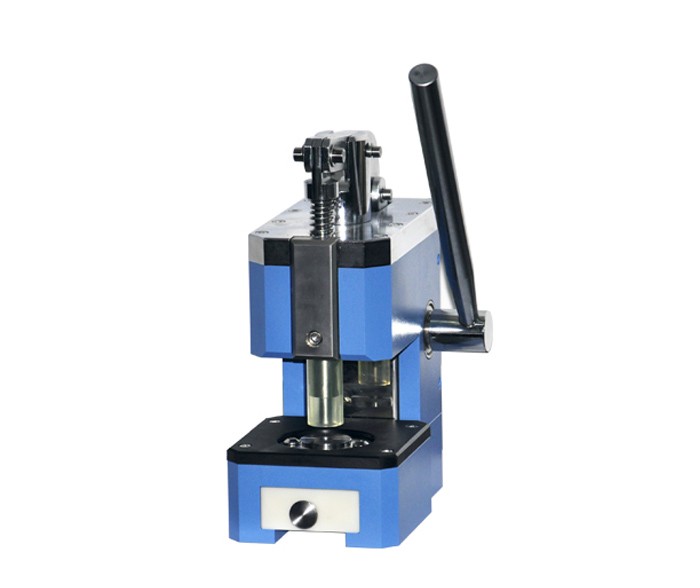

CHY-PT10 compact disc cutter with quality sliding rail with ball bearing for precision cutting. It can be easily placed into a glove box. This tool is manually operated and is designed for cutting round discs of battery electrodes and separator film (<30um). The resulting discs can be used as electrode/separator discs of the split test cell and coin cell for battery researchers as well as TEM sample preparation.
| Model No. | CHY-PT10 |
| Mold Material | 3Cr13 |
| Cutter Distance | max 16mm |
| Cutting material tickness | 0.01~0.5mm |
| Working space | 120*120mm |
| Cutting size | Φ3-24mm |
| Product Dimension | 140*200*400mm |
| Gross Weight | 12Kg |
