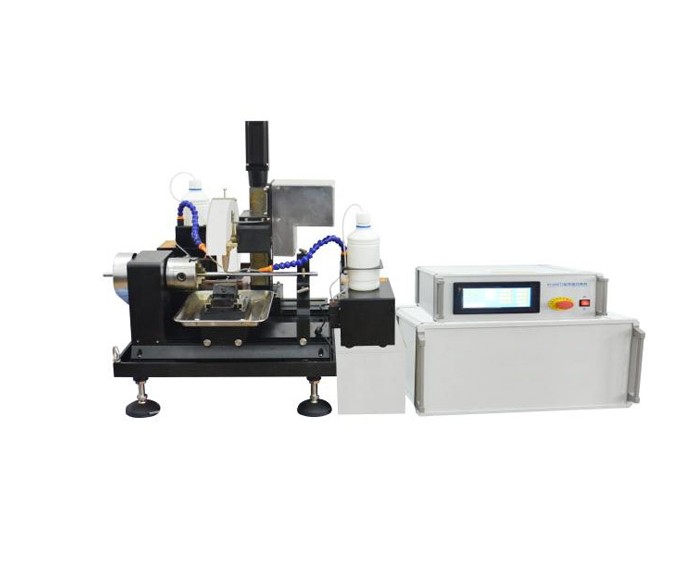

Compact CNC Cylindrical Grinding and Grooving Machine - SYJ-400TZ

Inquire Now Next Product

Application

SYJ-400TZ is a cylindrical grinding and grooving machine, designed for grinding small ceramic or metallic rod. It can be controlled by a remote control box to set up parameters for grinding and cutting requirements.

Product parameters

Power supply	AC 220V 50Hz
Effective Range	Main shaft speed: 100 - 3,000 rpm X-axis travel distance: 160 mm Z-axis travel distance: 100 mm A-axis rotation degree: 360° A-axis rotation tolerance: 360±0.5°
Stepper Motor Accuracy	0.01mm position accuracy
Blade	Blade diameter: 150±10 mm Blade bore diameter: 12.7 mm
Dimensions	Machine: 510mm x 500mm x 635mm Control box: 500mm x 400mm x 210mm Remote control box: 380mm x 310mm x 210mm
