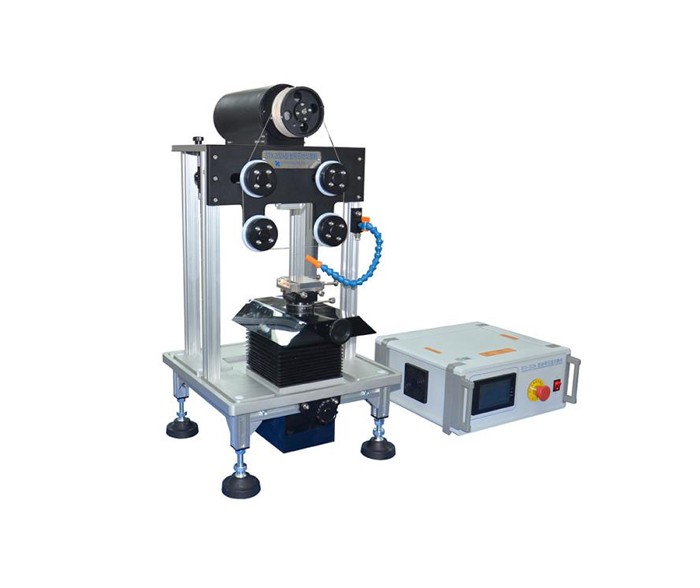

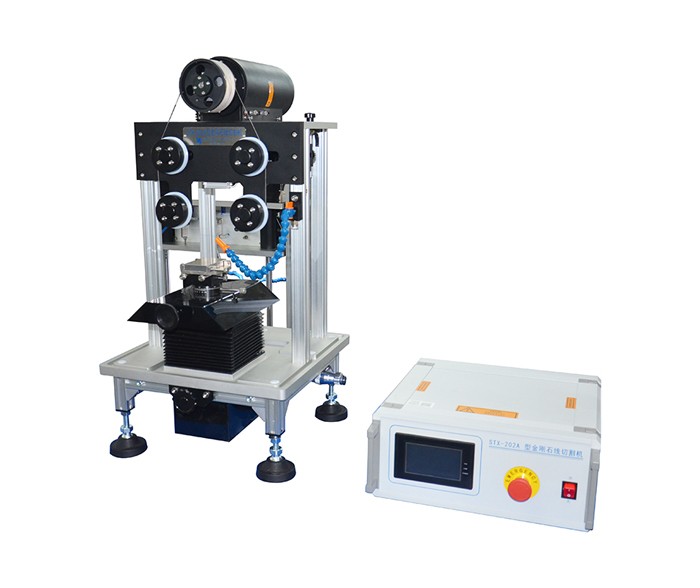

STX-202A Desktop Precision Diamond Wire Saw With Touch Screen Control

Heavy-duty aluminum alloy structure with compact size
automatically controlled Y-axis by the digital panel
single wire swing cutting with adjustable wire length from 5-15mm
Transparent plastic plates are included to prevent Coolant splashing
Add an oil refill cup behind the forming tube, please apply 10-15 drops Anti-Wear Oil before first-time use
Wire spooler motor, 3 Amps, Torque = 1.8Nm

Inquire Now Next Product

Application

STX-202A is a small precision diamond wire saw for cutting sample ≤ 2" diameter or square up to 50mm in thickness. It is designed to provide smooth cutting for many kinds of materials, especially for fragile crystals and TEM or IC samples by using a 0.28mm diameter x 15-meter long diamond impregnated wire. It is an ideal cutting tool for material research, TEM sample preparation, and IC failure analysis.

Product parameters

Power supply	AC 220V 50Hz
Sample stage	Z-axis: 50mm, automatically controlled by the digital panel Y-axis: 50mm, automatically controlled by the digital panel Two-dimension sample stage built-in 360° degree horizontal rotating and +/-10° tilting vis manual operation
Cutting parameters	Feed Speed: 0.01 mm/min to 40 mm/min adjustable Back Speed: 1 mm/min to 100 mm/min adjustable Spooler spin speed: 1-260 RPM adjustable Cutting depth: 0.1 - 50mm Positional accuracy: +/- 0.01 mm
Controller & Touch Screen	Wire travel speed, cutting speed and slicing width is setted by touch screen controller
Diamond wire	≤ 15 meters used for each installatio
Wire tension system	steel spring wire tension system with break wire alarm is included
Product dimensions	Saw: 414mm(L) x 500mm(W) x 750mm(H) Controller: 340mm(L) x 290mm(W) x 170mm(H)
