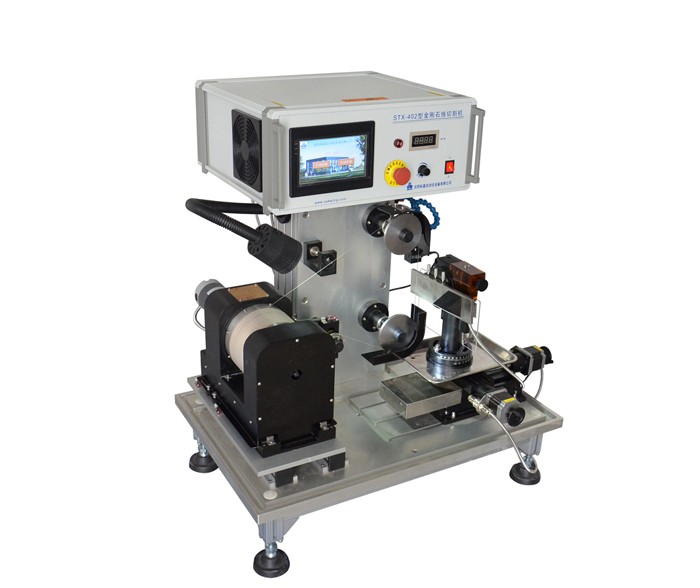

STX-402 Desktop Precision Diamond Wire Saw for Sale

  • Heavy-duty aluminum alloy structure with compact size

  • automatically controlled Y-axis by the digital panel

  • single wire swing cutting with adjustable wire length from 5-15mm

  • Transparent plastic plates are included to prevent Coolant splashing

  • Add an oil refill cup behind the forming tube, please apply 10-15 drops Anti-Wear Oil before first-time use

  • Wire spooler motor, 3 Amps, Torque = 1.8Nm


Share:
Application

STX-402 is a small precision diamond wire saw for cutting sample ≤ 4" diameter or square up to 100mm in thickness. It is designed to provide smooth cutting for many kinds of materials, especially for fragile crystals and TEM or IC samples by using a 0.28mm diameter x 15-meter long diamond impregnated wire. It is an ideal cutting tool for material research, TEM sample preparation, and IC failure analysis.

Product parameters
Power supply AC 220V  50Hz
Sample stage
  • x-axis: 1~110mmmm, automatically controlled by the digital panel

  • Y-axis: 0.01~110mm, automatically controlled by the digital panel

  • X,Y Accuracy 0.01mm

Two-dimension sample stage built-in 360° degree horizontal rotating and +/-10° tilting vis manual operation

Cutting parameters
  • Liner speed: 0.1 - 2m/s

  • Positional accuracy: +/- 0.01 mm

Controller & Touch ScreenWire travel speed, cutting speed and slicing width is setted by touch screen controller
Diamond wire100mm
Max cutting sizeΦ100*100mm
Wire tension systemsteel spring wire tension system with break wire alarm is included
Product dimensions

810*700*910mm
