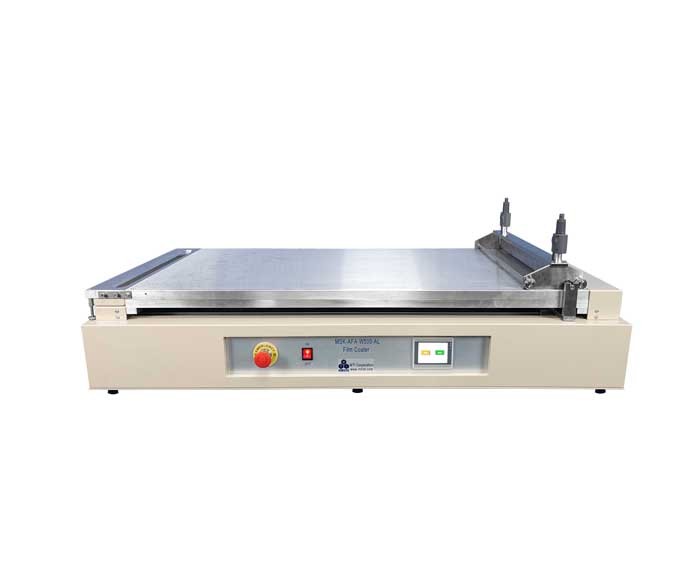

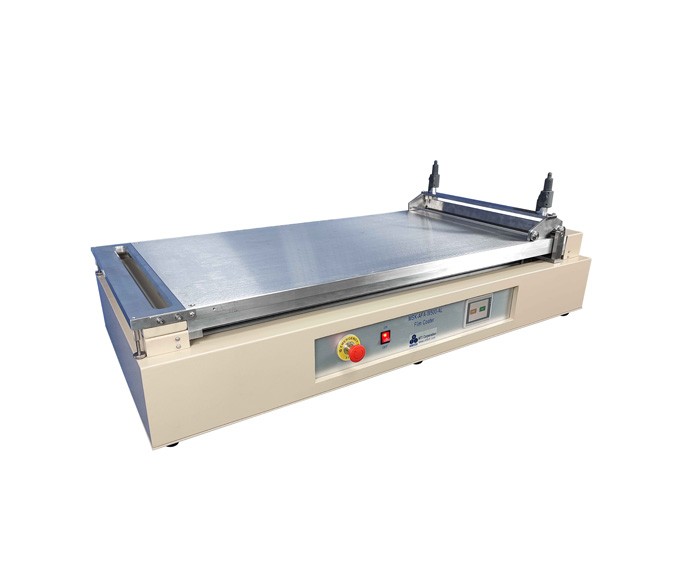

The MSK-AFA-W500-AL large flat coater is primarily designed for laboratory applications involving the coating of liquid or colloidal films. The equipment utilizes a precision-grade stepper gearbox motor to precisely control the coating speed, ensuring uniform advancement of the scraper for coating. The roller-type scraper, made of fully stainless steel, effectively reduces the frictional resistance between the scraper and the vacuum chuck during movement, thereby enhancing the consistency and uniformity of the coating.It's vacuum coating size is
1000mm×500mm.| Working Voltage | AC220V INPUT: 24VDC 5A |
| Max. Power Consumption | 80W |
| Traverse Speed | 500~5000mm/min variable· |
| Max. Vacuum Size | 1000*500mm with ±0.005mm accuracy |
| Coating length | 10~1000mm, adjustable |
| Platform | 1100*550mm |
| Film Applicator | One 500 mm width Micrometer Adjustable Film Applicator is included,with adjustable thickness from 0-5000um |
| Product Dimensions | 1280mm(L) x 620mm(W) x430mm(H) |
| Warranty | One Year limited warranty with lifetime support |
| Optional features | 120℃ Heating function |
