Programmable Vacuum Chuck Spin Coater 500-6000 rpm, 8inch Max VTC-200

1.Maximum Coating Wafer:8"

2.Working Power:AC110V~220V,50Hz

3.Vacuum Chuck: 3 pieces

Share:
Application

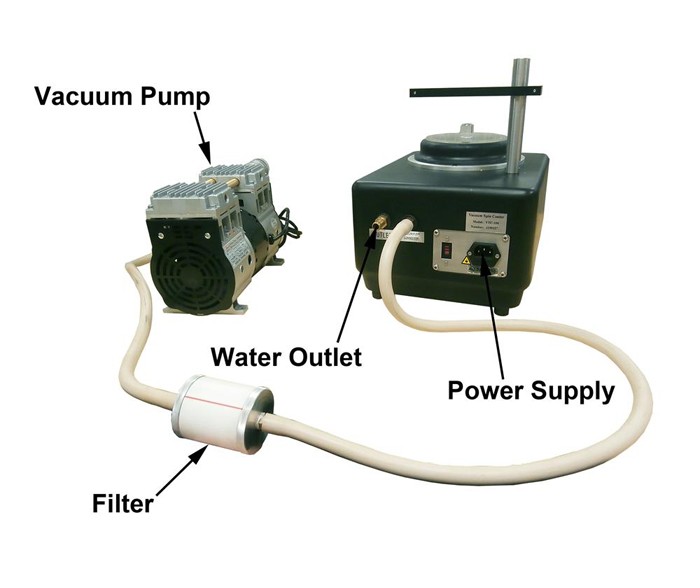

VTC-200 is CE certified compact spin coater with vacuum chucks designed for easy and quick coating via sol-gel for wafers up to 8" diameter or 5" x 5" square. The spinning speed is variable from 500-6000 rpm with two programmable segments.   The heatable cover is optional, which allow drying sample after coating
Product parameters
Power SupplyAC220/110V 50/60Hz
Rated Power200W
Coating speed500-6000rpm
Spin Speed & TimeDigital control panel with TWO programmable segments for different spin times and speeds
Spinning Time1 - 600s
Vacuum pump speed>60L/min
Vacuum chuck size150mm
Dimension350*500*400mm
