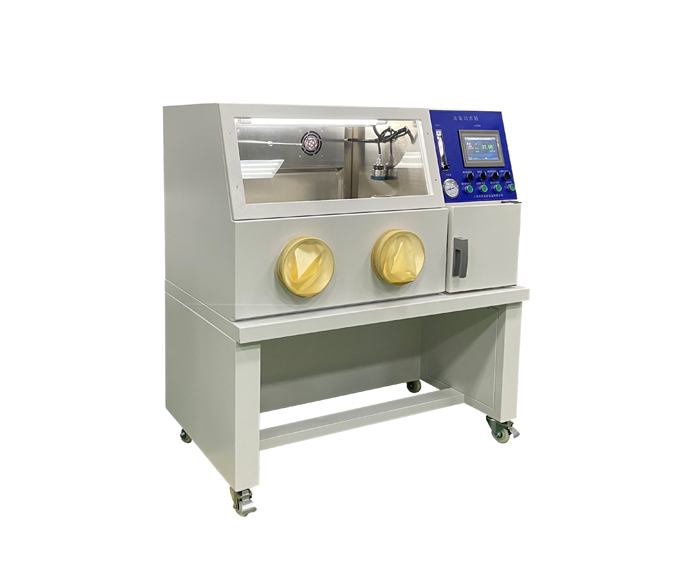

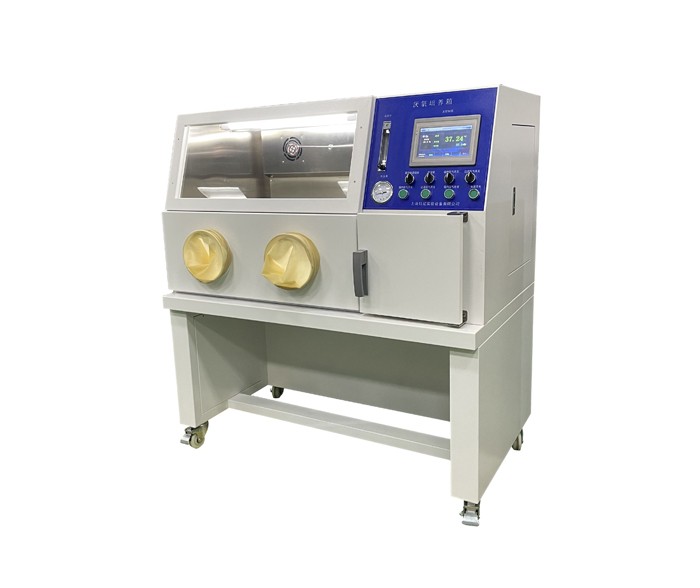

Laboratory Anaerobic Glove Box CHY-YQX-II

Inquire Now Next Product

Application

This product consists of a constant temperature incubator, anaerobic operating room, sampling room, gas and circuit control system, box rack, bottle rack, wax melting sterilizer, and other parts. A stable anaerobic environment can be formed in the operating room and designed for the cultivation of anaerobic microorganisms.
Adopting a microcomputer intelligent PID temperature controller, it can accurately reflect and control the temperature inside the incubator.
The box is equipped with a UV sterilization lamp.
The material of the incubator in the constant temperature incubator is SUS304 stainless steel.
The front windows of the operation room and sampling room are made of impact resistant special transparent glass, and the use of special gloves during operation is reliable, comfortable, flexible, and convenient.
The operating room is equipped with special inoculation rod sterilizers, wax melting disinfection devices, and deoxygenation catalytic converters.

Product parameters

Model No.	CHY-YQX-II
Temperature range	RT+3~60℃
Temperature uniform	≤±1℃
temperature fluctuation	≤±0.3℃
Anaerobic grade	oxygen content≤1%
Anaerobic method formed in the sampling room	Vacuum, gas displacement type (99.99% nitrogen or hydrogen, 5% carbon dioxide, 10% nitrogen, 85% mixed gas)
Time for the formation of anaerobic state in the operating room	≤1hour
Formation of anaerobic mode	Gas displacement type (a mixture composed of 99.99% nitrogen or hydrogen, 5% carbon dioxide, 10% nitrogen, and 85% nitrogen)+micro flow control
Maintenance time	＞ 12 hours without supplementing trace amounts of mixed gas
Sample size	330230320mm
Chamber size	800600670mm
Dimension	11207801320mm
temperature controller	LCD display PID temperature controller
Rated Power	680W
Power supply	220V/ 50Hz
