50g-200g/hr milling capacity

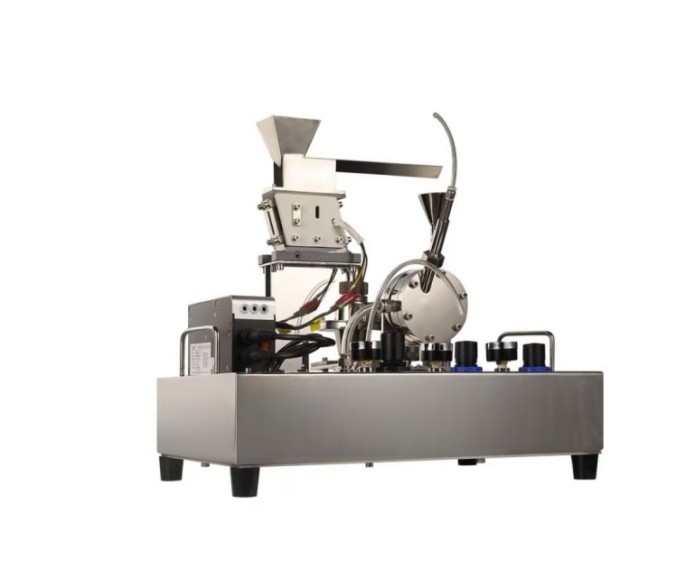

GTM-50 Micro Air Jet Mill is designed for precisely this scenario. As a miniature spiral jet mill, it offers a dedicated processing capacity of 50 to 200 grams per hour, making it the perfect bridge between hand-grinding mortar and pestles and large-scale production lines. It allows researchers to generate accurate, repeatable ultra-fine powder data using minimal sample quantities.
| Model | GTM-50 (Micro/Lab Scale) |
| Processing Capacity | 50 – 200 g/h (Depending on material characteristics) |
| Air Consumption | 0.6 - 1.0 m³/min |
| Working Pressure | 0.4 – 1.2 Mpa |
| Feed Particle Size | ≤ 100 mesh (≤150μm) |
| Finished Particle Size (D50) | 0.5 – 30 μm (Adjustable) |
| Product Collector | Cyclone（Optional） + Dust Collector |
| Contact Material | High-Purity Alumina Ceramic / 304 Stainless Steel |
